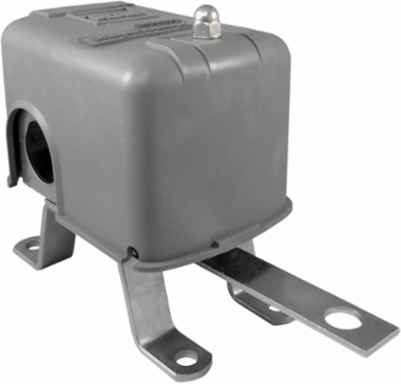

Telemecanique Sensors 9036DG2R Float switch, 9036D, Pumptrol, open tank, NEMA 1, pedestal mounted, 2NO DPST-DB, 575 VAC, factory modification Without

MPN: 9036DG2R
UPC: 785901576433
PPN: TES-9036DG2R

$97.37

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Float switch, 9036D, Pumptrol, open tank, NEMA 1, pedestal mounted, 2NO DPST-DB, 575 VAC, factory modification Without

Documentation & Downloads

Specifications

Key Specifications

Indivisible sale quantity	1

Commercial status	Commercialised

Complementary

Product destination	For open tank or sump
Contacts type and composition	2 NO, snap action, DPST-DB, Form XX
Electrical connection	Screw-clamp terminals, clamping capacity: 10 AWG
Float movement	Variable adjustable
Float rod angle	Vertical
Enclosure material	Polypropylene or equivalent
Terminal block type	4 terminals
Terminals description ISO n°1	Line-load-load-line
Kit composition	Float switch rod and float are to be choosen in accessories

Device mounting	Pedestal
Controlled fluid	Fresh water at specific gravity of 0.85 in or higher, sea water at specific gravity of 0.85 in or higher, hydraulic oil at specific gravity of 0.85 in or higher, corrosive fluid at specific gravity of 0.85 in or higher
Contact operation	Contacts open on liquid rise
Float position	Any
Local signalling	Without
Operating position	Vertical position only
Operating rate	60 cycles/min
Factory modification	Without
