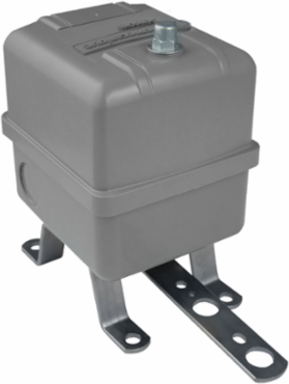

Telemecanique Sensors 9036GG2H Float switch, Square D Pumptrol, open tank, NEMA 1, pedestal mounted, NC NO DPST DB contacts
- MPN: 9036GG2H
- UPC: 785901054016
- PPN: TES-9036GG2H
- UNSPSC: 39122219
CAD
$197.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Float switch, Square D Pumptrol, open tank, NEMA 1, pedestal mounted, NC NO DPST DB contacts
Documentation & Downloads
Specifications
Key Specifications
| Range Of Product | Square D Pumptrol |
|---|---|
| Quantity Per Set | set of 1 |
| Product Or Component Type | float switch |
| Device Application | open tank heavy duty |
| Product Specific Application | liquid level control |
|---|---|
| Electrical Circuit Type | power circuit |
| Type Of Packing | individual |
| Device Short Name | 9036G |
Complementary
| Cable Entry Number | 3 knock-outs for 1/2" conduit UL 508 |
|---|---|
| Contact Operation | contacts close on liquid rise |
| Terminal Block Type | 4 terminals |
| [Ui] Rated Insulation Voltage | 575 V UL 508 |
| Controlled Fluid | fresh water specific gravity of 0.85 in or higher || sea water specific gravity of 0.85 in or higher || hydraulic oil specific gravity of 0.85 in or higher || corrosive fluid specific gravity of 0.85 in or higher |
| Force Up To Trip | 21 ozf long lever || 33 ozf short lever |
| Force Down To Trip | 27 ozf long lever || 39 ozf short lever |
| Factory Modification | without |
| Operating Position | vertical position only |
| Maximum Operating Rate | 60 cyc/mn |
| Contacts Type And Composition | NC-NO, snap action, DPST-DB, Form Zb |
| Float Position | any |
| Kit Composition | rod and float are to be choosen in accessories || float switch |
| Electrical Connection | screw-clamp terminals 10 AWG |
|---|---|
| Product Destination | for open tank or sump |
| Terminals Description Iso N°1 | line-load-load-line |
| Short-Circuit Protection | 20 A cartridge fuse gG |
| Device Mounting | pedestal |
| Mechanical Durability | 300 cycles |
| Float Rod Angle | vertical |
| Float Movement | variable adjustable |
| Enclosure Material | noryl thermoplastic resin or equivalent |
| Local Signalling | without |
| Motor Power Kw | 0.37 kW 0.5 hp)115 V DC || 0.37 kW 0.5 hp)230 V DC || 0.75 kW 1 hp)115 V AC, 1 phase || 1.5 kW 2 hp)230 V AC, 1 phase || 1.5 kW 2 hp)460 V AC, 1 phase || 1.5 kW 2 hp)475 V AC, 1 phase |
| Net Weight | 2.5 lb(US) |
| Electrical Durability | 100 cycles 60 cyc/mn |
Environment
| Product Certifications | CSA file LR25490 || UL listed file E12158 |
|---|---|
| Ambient Air Temperature For Storage | -22-220 °F |
| Nema Degree Of Protection | NEMA 1 UL 50 |
| Ambient Air Temperature For Operation | -22-220 °F |
|---|---|
| Standards | UL 508 || CE |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Circularity Profile | ENVEOLI111210EN |
|---|---|
| Mercury Free | Yes |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP111211EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
