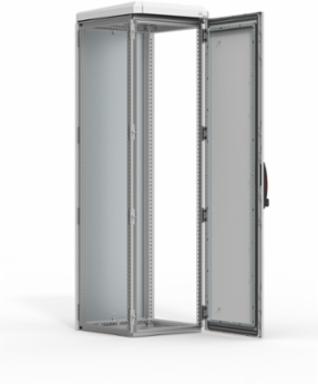

nVent Hoffman ECOM16086 Floor standing, 1600x800x600, Combinable enclosure, no MP, aluminium, IP66

Floor standing, 1600x800x600, Combinable enclosure, no MP, aluminium, IP66
  • MPN: ECOM16086
  • UPC: 783510474089
  • PPN: HOF-ECOM16086

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

Description

Aluminium double wall, single door combinable floor standing enclosure for outdoor use IP 66 protection. This Combinable Single Door Aluminium Floor Standing Outdoor Enclosure, ECOM, ECOM16086 item measures 1600x800x600mm has a material of Aluminum color Unpainted, finish Brushed.

Features

  • Material: Aluminium ALMg3. Door: 2 mm. Rear panel: 2 mm. Rain hood: 2 mm. Bottom plate: 2 mm.
  • Frame: AISI 304L pre-grained stainless steel. Frame: 1.5 mm. Seam welded reversed open profiles with 25 mm hole pattern according to DIN 43660.
  • Door: Double walled with top and bottom ventilation openings, allowing air flow. Mounted with concealed hinges, allowing left or right hand opening.
  • Rear panel: Double walled with top and bottom ventilation openings allowing air flow. Fastened from the inside. Standard facilities for rear door mounting.
  • Rainhood: Sloped rainhood with integrated rain gutter and ventilation channels around the perimeter.
  • Side panels: Supplied as an accessory.
  • Bottom plates: One piece bottom plate, with injected polyurethane gasket to ensure maximum sealing.
  • Lock: Espagnolette 4-point locking system. Does not interfere with the enclosure inner space. Standard lift handle with security lock.
  • Earthing: Internal panels are earthed through their fittings and are equipped with a separate earthing stud.
  • Finish: RAL 7035 structured powder coating 100% polyester.
  • Protection: Complies with IP 66 | TYPE 4X, 12 | IK 10, when bottom plate is fitted.
  • "Approvals: Climatic and Chemically active substances resistance according to EN61969-3 ""Mechanical structures for electronic equipment. Outdoor enclosures”."
  • Delivery: Frame with fitted door and lifthandle, rear panel and rain hood. Delivery also includes earthing bolts. Delivered on a pallet which is identical to the width of the enclosure to allow baying without removal. All packing material is recyclable. Mounting plate and side panels are not included in the standard delivery.

Specifications

Specifications

BABA
Contact Manufacturer
Width (W)
800
Material
Aluminum
Thickness (T)
2
Height (H)1,600
Depth (D)600
FinishBrushed
