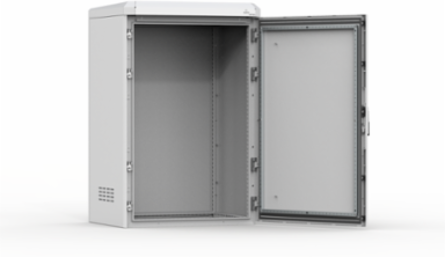

nVent Hoffman EKOM12126 Compact Aluminum Floor Standing Enclosure 1200x1200x600mm, IP66
nVent Hoffman EKOM12126 Compact Aluminum Floor Standing Enclosure 1200x1200x600mm, IP66
- MPN: EKOM12126
- UPC: 783510478117
- PPN: HOF-EKOM12126
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
This enclosure, EKOM, has IP66 protection with anti-vandalism and is available off the shelf in many different sizes. This Compact Aluminium Floor Standing Outdoor Enclosure, EKOM, EKOM12126 item measures 1200x1200x600mm has a material of Aluminum color Light Gray, finish Powder Coated.
Features
- Body: One piece enclosure body. Integrated depth profiles with hole pattern, allowing mounting plate to be adjusted in depth. The frame in multiple door versions, is divided into individual modules by means of vertical dividers.
- Rainhood: Sloped rainhood with integrated rain gutter and ventilation channels in the perimeter.
- Double wall: Rear and lateral double walls with top and bottom ventilation openings allowing air flow.
- Earthing: All panels are earthed through their fittings and are equipped with a separate earthing stud.
- "Approvals: Climatic and Chemically active substances resistance according to EN61969-3 ""Mechanical structures for electronic equipment. Outdoor enclosures”."
- Bottom plates: Supplied as accessory.
- Rear panel: Fastened from the inside. Standard facilities for rear door mounting.
- Protection: Complies with IP 66, TYPE 4X, 12, IK 10, when a bottom plate is fitted.
- Material: Aluminium AlMg3. Frame: 2 mm. Door: 2 mm. Rear panel: 2 mm. Rain hood: 2 mm. Double wall: 2 mm.
- Lock: Espagnolette 4-point locking system. Does not interfere with the enclosure inner space. Standard lift handle with security lock.
- Finish: RAL 7035 structure powder coating 100% polyester.
- Door: Double walled with top and bottom ventilation openings, allowing air flow. Mounted with concealed hinges, allowing left or right hand opening. Multiple door version has individual lockable doors.
- Delivery: Frame with fitted door with swinghandle, rear panel, rain hood and double walls. Delivery also includes earthing bolts. Delivered on a pallet which is identical to the width of the enclosure to allow baying without removal. All packing material is recyclable. Mounting plate and bottom plates are not included in the standard delivery.
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 1,199
- Door Quantity
- 2
- Material
- Aluminum
- Color
- Light Gray
- Thickness (T)
- 2
Height (H)1,200
Depth (D)600
Protection RatingNEMA Type 4X
FinishPowder Coated
Color CodeRAL 7035
Weight72
