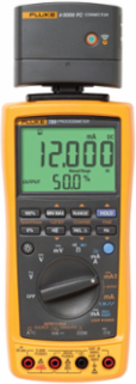

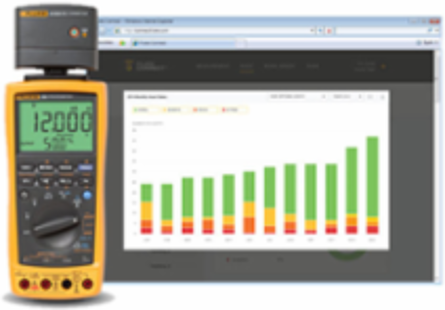

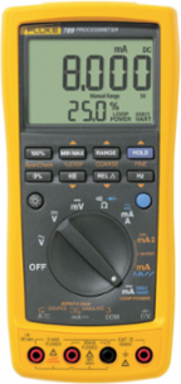

Fluke FLUKE-789 Fluke 789 ProcessMeter™ Fluke-789
- MPN: FLUKE-789
- UPC: 095969112192
- PPN: FLU-FLUKE-789
CAD
$1994.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Fluke 789 ProcessMeter™ Fluke-789
Documentation & Downloads
Specifications
Key Specifications
| Current measurement Range | 0-1 A AC or DC || 0-30 mA |
|---|---|
| Current measurement Accuracy | 0.2% + 2 LSD (DC) || 0.05% + 2 lSD |
| Current sourcing Resolution | 0.05% of span |
| Frequency | to 19.999 kHz, 0.005% + 1 LSD |
| Voltage measurement Range | 0-1000 V AC (true-rms) or DC |
| Voltage measurement Accuracy | 0.1% Rdg + 1 LSD (VDC) |
| Diode test | 2.0 V shoes diode voltage drop |
| Auto Step, Auto Ramp | Yes |
| Current measurement Resolution | 1 mA || 0.001 mA |
|---|---|
| Current sourcing Range | 0-20 mA or 4-20 mA |
| Current sourcing Drive capability | 24 V Compliance or 1200 Ω @ 20 mA |
| Continuity | Beeps for resistance < 100 Ω |
| Voltage measurement Resolution | 0.1 mV to 1.0 V |
| Resistance measurement | to 40 MΩ, 0.2% + 1 LSD |
| Display current and % of span | Yes |
Mechanical and General Specifications
| Size (H x W x L) | 50 x 100 x 203 mm (1.25 x 3.41 x 7.35 in) |
|---|---|
| Batteries | 4 AA alkaline batteries |
| Battery life | 140 hours typical (measurement), 10 hours typical (sourcing 20 mA) |
| Weight | 610 g (1.6 lbs) |
|---|---|
| Warranty | 3 years |
| Shock and vibration | Random, 2 g, 5-500 Hz1 meter drop test |
Environmental Specifications
| Operating temperature | -20°C to 55°C |
|---|---|
| Humidity (without condensation) | 95% up to 30°C75% up to 40°C45% up to 50°C35% up to 55°C |
| Storage temperature | -40°C to 60°C |
|---|---|
| Temperature coefficient | 0.05 x (specified accuracy) per °C (for temperatures < 18°C or > 28°C) |
Safety Specifications
| Electrical safety | Designed in accordance with IEC 1010-1, ANSI/ISA S82.01-1994 and CAN/CSA C22.2 No 1010.1-92 |
|---|---|
| Maximum voltage | 1000 V RMS |
| Overvoltage category | IEC 1010-1 CAT III 1000 VIEC 1010-1 CAT IV 600 V |
|---|
