Documentation & Downloads
Fluke Fluke-789 FC/T3000 Fluke 789 FC ProcessMeter™ and Temperature Kit Fluke-789 FC/t3000
- MPN: Fluke-789 FC/T3000
- UPC: 095969726887
- PPN: FLU-FLUKE-789/T3000 FC
CAD
$2619.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

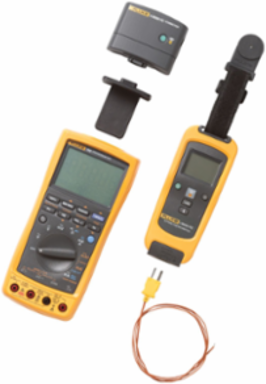

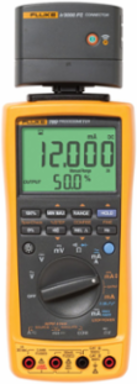

Fluke 789 FC ProcessMeter™ and Temperature Kit Fluke-789 FC/t3000
Documentation & Downloads
Specifications
Key Specifications
- Current measurement Range
- 0-1 A AC or DC || 0-30 mA
- Current measurement Accuracy
- 0.2% + 2 LSD (DC) || 0.05% + 2 lSD
- Current sourcing Resolution
- 0.05% of span
- Frequency
- to 19.999 kHz, 0.005% + 1 LSD
- Voltage measurement Range
- 0-1000 V AC (true-rms) or DC
- Voltage measurement Accuracy
- 0.1% Rdg + 1 LSD (V DC)
- Diode test
- 2.0 V shoes diode voltage drop
- Auto Step, Auto Ramp
- Yes
Current measurement Resolution1 mA || 0.001 mA
Current sourcing Range0-20 mA or 4-20 mA
Current sourcing Drive capability24 V Compliance or 1200 Ω @ 20 mA
ContinuityBeeps for resistance < 100 Ω
Voltage measurement Resolution0.1 mV to 1.0 V
Resistance measurementto 40 MΩ, 0.2% + 1 LSD
Display current and % of spanYes
Mechanical and General Specifications
- Size (H x W x L)
- 50 x 100 x 203 mm (1.25 x 3.41 x 7.35 in)
- Batteries
- 4 AA alkaline batteries
- Battery life
- 140 hours typical (measurement), 10 hours typical (sourcing 20 mA)
Weight610 g (1.6 lbs)
Warranty3 years
Shock and vibrationRandom, 2 g, 5-500 Hz1 meter drop test
Environmental Specifications
- Operating temperature
- -20°C to 55°C
- Humidity (without condensation)
- 95% up to 30°C75% up to 40°C45% up to 50°C35% up to 55°C
Storage temperature-40°C to 60°C
Temperature coefficient0.05 x (specified accuracy) per °C (for temperatures < 18°C or > 28°C)
Safety Specifications
- Electrical safety
- Designed in accordance with IEC 1010-1, ANSI/ISA S82.01-1994 and CAN/CSA C22.2 No 1010.1-92
- Maximum voltage
- 1000 V RMS
Overvoltage categoryIEC 1010-1 CAT III 1000 VIEC 1010-1 CAT IV 600 V
