Bryant

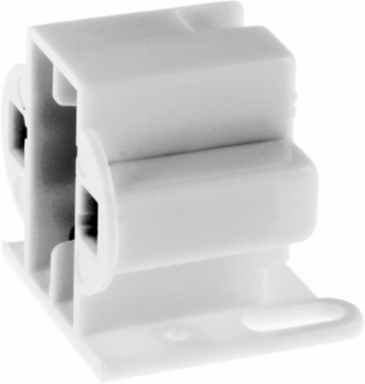

Bryant RL413HSM Compact Fluorescent Lamp Holder, 13 Watt G23X, Horizontal Screw Mount, 4 Inch Width

Compact Fluorescent Lamp Holder, 13 Watt G23X, Horizontal Screw Mount, 4 Inch Width
  • MPN: RL413HSM
  • UPC: 883778303937
  • PPN: HBL-RL413HSM
  • UNSPSC: 39111803

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$8.40/ EA

Description

Fluorescent Lamp Holders, Compact Type, 13 Watt G23X, Horizontal Mount, Screw Mount, White

Features

  • Compact Type
  • 13 Watt G23X
  • Horizontal Mount
  • Screw Mount
  • Standard Product

Specifications

Specifications

Country of Origin
China
Industry Standard(s)
C/US UL Listed;CSA Certified
Application
Compact Fluorescent
Frequency Rating
60 Hz
Special Features
Standard Product
Type
Compact Fluorescent
Connectivity
Screw Terminals
Freight Class Code
06168002
Image Actual Or Representative
A
Material - Mounting Hardware
Horizontal Screw Down
Material
Composite
Base Unit of Measure
EA
Carton - Gross Weight per Pack
0.45 lb.
Carton - Pack Description
Carton
Carton - Total Units
10 EA
Case Weight
5.000 lb.
Lowest Level UOM
Each
Width4.000 in
PerformanceElectrical - Rating - 26-32W lamp type, 75W, 600V;Mechanical - Terminal Accommodation - Push-in wire terminals for #18 AWG solid or twist and tin stripped 7/16 inch wire
ColorWhite
Lamp SizeGX23 Base
StandardC/US UL Listed;CSA Certified
Voltage Rating600V AC kV
Description - InvoiceCMPT FL LPHLDR 13W G23X HORZ SCREW
Harmonization Code8536610000
MSDS FlagNo
Current RatingTelephone/CATV A
SeriesLampholders
BOX SIZE4.000x9.100x7.600 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack883778303937
Case - Total Units100 EA
Each - Pack DescriptionEach

Certifications

EU RoHS Indicator
No
