Leviton

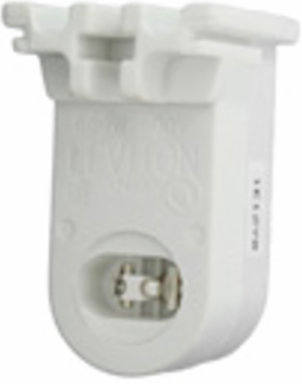

Leviton 13465-W Fluorescent lampholder, pedastal base, 660W-600V, high output,recessed double contact, stationary end, C.O.F. white. For push-in wiring. Mounting screws and nutspackaged bulk in bags. Packaged 200/Leviton carton bulk

Fluorescent lampholder, pedastal base, 660W-600V, high output,recessed double contact, stationary end, C.O.F. white. For push-in wiring. Mounting screws and nutspackaged bulk in bags. Packaged 200/Leviton carton bulk
  • MPN: 13465-W
  • UPC: 078477220030
  • PPN: LEV-13465-W

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$19.30/ EA

Description

Fluorescent lampholder, pedastal base, 660W-600V, high output,recessed double contact, stationary end, C.O.F. white. For push-in wiring. Mounting screws and nutspackaged bulk in bags. Packaged 200/Leviton carton bulk

Specifications

Standards and Certifications

CSA Certified
File LR-5863
UL Listed
File E5833
NOM Certified057

Mechanical Specifications

Contact Type
Stationary
Mounting Type
Slide-On or Screw Mount
Rated Wattage
660W
Voltage
600 Volt
Mounting OrientationVertical
Panel Thickness20 Ga. Panel
TerminationQuickwire 18AWG Solid or Str. Tinned

Specifications

Country of Origin
Mexico
RoHS CompliantTrue

Product Features

Availability
OEM BULK ONLY
Color
White
Lamp Base
High-Output
Lampholder Type
Compact
Notes
Captive Nut Screws Packed Bulk
Screw
8-32 X 1/2 Zinc-Plated
Style Name
Pedestal
Body MaterialThermoset
Contact MaterialSilver-Plated Copper-Alloy
Lamp ContactsDouble Contact Horz.
Light TypeFluorescent
Nut8-32 Zinc-Plated
Standards and CertificationsUL/CSA/NOM
Warranty1 Year Limited

Electrical Specifications

Contact Type
Stationary
Mounting Type
Slide-On or Screw Mount
Termination
Quickwire 18AWG Solid or Str. Tinned
Lamp Wattage660 W
Panel Thickness20 Ga. Panel
Wire Strip Length3/8 - 1/2 Inch
