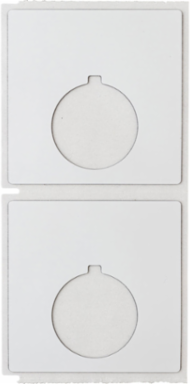

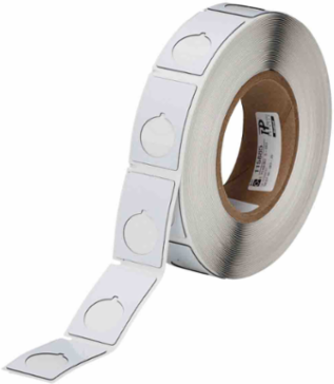

Brady THTEP168-593-.25 Foam Backed Raised Panel Labels, 1.9" H x 1.2" W, White, Roll of 250 Labels
Brady THTEP168-593-.25 Foam Backed Raised Panel Labels, 1.9" H x 1.2" W, White, Roll of 250 Labels
- MPN: THTEP168-593-.25
- UPC: 662820802594
- PPN: BRD-THTEP168-593-.25
- UNSPSC: 55121612
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$468.84/ EA
Description

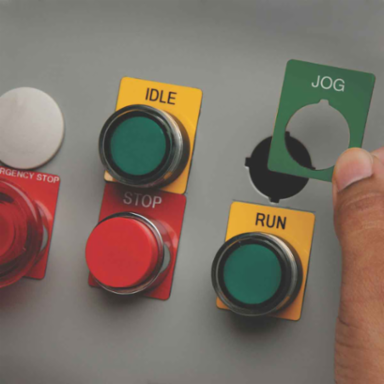

Raised panel Adhesive-Taped Polyester (B-593) labels are designed for patch panel identification, external push-buttons, switches and internal connection points.
Features
- Can be used as rating and serial plates using alphanumerics that require nameplate quality
- Aggressive adhesive and solvent resistance makes them a great replacement for engraved tags
- UL approved
- Service temperature of -4 to 212° F (-20 to 100° C)
Specifications
Specifications
- Applications
- Electrical Labeling; General Identification
- Bulk Part
- Not a Bulk Part
- Compatible Surface Types
- High Surface Energy
- Finish
- Gloss
- Label/Media Format
- Roll
- Patent Valid in (Countries)
- USA
- Print Technology
- Thermal Transfer
- Quantity per Roll
- 250
- Recommended Ribbon
- IP-R6006; R6006
- Suggested Ribbon Series
- R4400; R6000 Halogen Free
- Adhesive Type
- Permanent Acrylic - Foam Backed
- Indoor or Outdoor Use
- Outdoor Use
- Material
- Polyester
- Resistance Properties
- Abrasion-Resistant; Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant
- Average Outdoor Durability
- 10 Years
- Dimensions (Metric)
- 48.3 mm H
- Height (in/ft/yd)
- 1.9 in
- Hole Inside Diameter (in/ft/yd)
- 0.886 in
- Label/Tape Size (in/ft/yd)
- 1.9 in H x 1.2 in W
- Maximum Service Temperature °F
- 212 °F
- Minimum Service Temperature °F
- -4 °F
- Printable Area Height (mm/cm/m)
- 48.26 mm
- Sign Size-General
- 1.9 in x 1.2 in
- Thickness (mm/cm/m)
- 0.65 mm
- Width (in/ft/yd)
- 1.2 in
Brand NameBrady®
ColorWhite
Enables Industry ComplianceASTM D 1000; ASTM D 2979; UL Recognized
For Use with PrinterBBP®81 Label Printer; BRADY IP® Series Label Printer; BradyPrinter i5100; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
Patent Number(s)8,475,914.00
Primary Noun, Basic FunctionLabel
Printer and Label ApplicationsElectrical
Quantity per Row1
ShapeRectangle
Total Quantity250
Brady Material NumberB-593
Label PropertiesHeat Resistant Labels; Permanent Adhesive Labels
Material PropertiesRaised
SAP B-NumberB-593
Dimensions1.9 in H x 1.2 in W
Dimensions 21.9 in H x 1.2 in W
Height (mm/cm/m)48.3 mm
Hole Inside Diameter (mm/cm/m)22.5 mm
Maximum Service Temperature °C100 °C
Minimum Service Temperature °C-20 °C
Printable Area Dimensions (Metric)48.26 mm H x 30.48 mm W
Printable Area Width (mm/cm/m)30.48 mm
Thickness (in/ft/yd)0.0256 in
Vertical Repeat2.125 in
Width (mm/cm/m)30.48 mm
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Not Applicable
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantNo
