Fork Meter for HVAC/R (NIST)
Milwaukee Tool

Milwaukee Tool 2206-20NST Fork Meter for HVAC/R (NIST)

  • MPN: 2206-20NST
  • UPC: 045242341184
  • PPN: MIL-2206-20NST
  • UNSPSC: 41113630

CAD

$380.83

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

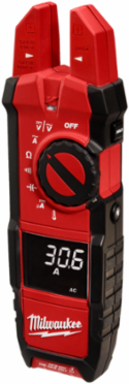

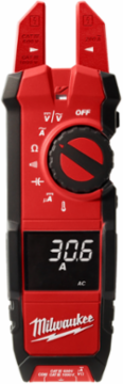

The Milwaukee fork meter for HVAC/R (NIST) is a heavy duty True-RMS electrical tester for professional residential, commercial and industrial applications. The 2206-20 is five tools in one providing current measurement, temperature measurement, voltage measurement, voltage detection and task lighting. Additionally, the new tool provides a wide 0.63 in. fork opening, high 200 amp current range and a high contrast white-on-black display. A NIST certificate of calibration with data is also included, needed by many organizations as proof of calibration with the date when NIST calibration was performed. Covered by Milwaukee 5-year warranty. Bullets: measures up to 200 amp, wide 0.63 in. jaw opening; wide voltage range to 1000 AC /DC volts; True-RMS for accurate measurement in all applications.

Features

  • Measures up to 200 amps, Wide 0.63” jaw opening
  • Wide Voltage range to 1000 volts AC /DC
  • True-RMS for accurate measurement in all applications
  • Built-In Voltage Detector and LED Work Light
  • Thermocouple (dual banana) input for contact temperature measurement
  • 600 uA DC for Flame Rectification
  • High Contrast, White on Black Display with Backlight for easy reading
  • Rugged over-molding increases durability and user grip

Documentation & Downloads

Specifications

Key Specifications

Color Finish
Black;Red
Material
Plastic
Voltage
1000
Depth7.85 Inches
Operating Temperature14 Degrees to 122 Degrees F
Country of OriginUnited States
