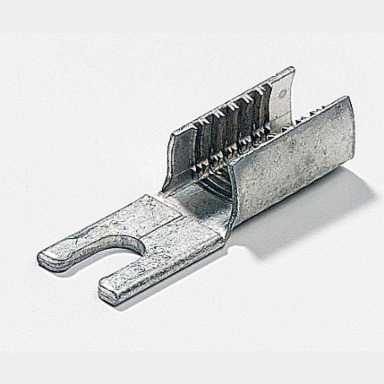

Dragon Tooth 22F106 Fork Terminal

Fork Terminal
  • MPN: 22F106
  • UPC: 786210837512
  • PPN: T-B-22F106

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$0.77/ EA

Description

Insulation Piercing Magnet Wire Fork Terminal, Length .91 Inches, Width .30 Inches, Length of Teeth .45 Inches, Width of Teeth .25 Inches, Stud Size 10, Wire Range #16 AWG - #12 AWG 2,580 Circular Mil Area - 12,330 Circular Mil Area, Copper Alloy, Tin Plated

Features

  • Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire.
  • For aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections.

Specifications

North American Specifications (UNSPSC)

UNSPSC
39121432 Electrical terminals
Brand Name
Dragon Tooth
Special Features
Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire.
Standard
UL E9809
IGCC4603 Electrical terminals
TypeFork Terminal
ApplicationFor aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections.
MaterialCopper

European Specifications (ETIM)

ETIM
EC001059 Crimp splices for copper conductor
Model
Standard version
Suitable for solid cores
N
Suitable for fine strand conductors
N
Suitable for round conductors
Y
Material
Copper
Insulation
None
Type of connection
End connector
AWG-range16-12
Sleeve formShort
Useful for stranded conductorsN
Suitable for insulated varnishY
Suitable for flat conductorsY
Surface protectionTinned
Voltage rowUp to 600 V
Oil stop/centre barN

Packaging

Inner Quantity
1000
Outer Quantity
5000
Weight Uom
2.5 lbs. per 1000
Inner Dimensions (inches)6x4.5x3
