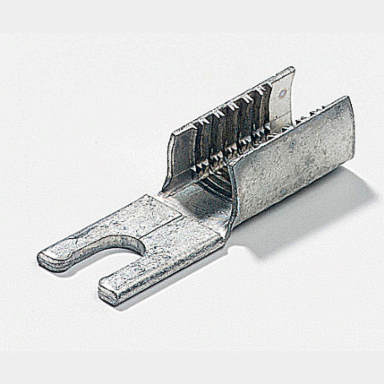

Dragon Tooth 22F086 Fork Terminal

MPN: 22F086
UPC: 786210848679
PPN: T-B-22F086

$0.75

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Insulation Piercing Magnet Wire Fork Terminal, Length .91 Inches, Width .30 Inches, Length of Teeth .45 Inches, Width of Teeth .25 Inches, Stud Size 8, Wire Range #16 AWG - #12 AWG 2,580 Circular Mil Area - 12,330 Circular Mil Area, Copper Alloy, Tin Plated

Features

Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire.
For aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections.

Specifications

Packaging

Inner Quantity	1000
Outer Quantity	5000
Weight Uom	2.5 lbs. per 1000

Inner Dimensions (inches)	6.3x3.3x4.69
Outer Dimensions (inches)	10.5x8.7x7.2

European Specifications (ETIM)

ETIM	EC001059 Crimp splices for copper conductor
Model	Standard version
Suitable for solid cores	N
Suitable for fine strand conductors	N
Suitable for round conductors	Y
Material	Copper
Insulation	None
Type of connection	End connector

AWG-range	16-12
Sleeve form	Short
Useful for stranded conductors	N
Suitable for insulated varnish	Y
Suitable for flat conductors	Y
Surface protection	Tinned
Voltage row	Up to 600 V
Oil stop/centre bar	N

North American Specifications (UNSPSC)

UNSPSC	39121432 Electrical terminals
Brand Name	Dragon Tooth
Special Features	Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire.
Standard	UL E9809

IGCC	4603 Electrical terminals
Type	Fork Terminal
Application	For aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections.
Material	Copper
