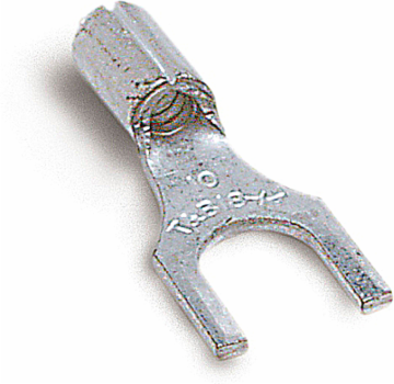

Sta-Kon B19 Fork Terminal

Name: Sta-Kon B19 Fork Terminal
Brand: Sta-Kon
SKU: T-B-B19
Price: 0.39 CAD
Availability: BackOrder

CAD

$0.39

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Non-Insulated Fork Terminal, Length .66 Inches, Width .25 Inches, Bolt Hole #6, Wire Range #18-#14 AWG, Copper, Tin Plated

These non-insulated fork terminals are made of electrolytic copper for high conductivity.
They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire).
Serrated barrel increases grip on wire.
Application Tools: WT110M, WT111M, WT112M, WT2000, ERG4002

ETIM	EC001052 Solderless copper terminals for copper conductors
Insulation	None
AWG-range	18-14
Surface protection	Tinned

Inner Dimensions (inches)	3.5x3x3
Outer Dimensions (inches)	16x7x4.5

UNSPSC	39121432 Electrical terminals
Brand Name	Sta-Kon
Special Features	These non-insulated fork terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire.
Wire Size	18-14
Material	Copper
