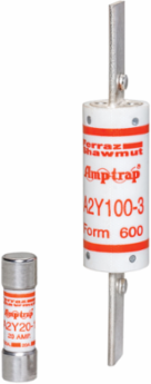

Mersen A2Y200-3 Form 600 Fuse 250V 200A Type 3 Blade Mount, 1.5 Inch Diameter, Clip Mounting
- MPN: A2Y200-3
- UPC: 782001905880
- PPN: FER-A2Y200-3
CAD
$686.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Mersen Form 600 fuses are the original current-limiting fuses, predating all the standards. Their 500V DC rating (through 600A) is a useful feature for special fusing applications. Form 600 fuses provide a high degree of current limitation in AC and DC applications. Types 1 and 3 are dimensionally interchangeable with Class H and K fuses. Types 4 and 5 have unique rejection dimensions and are not interchangeable.
Specifications
Key Specifications
- Rated voltage AC UL
- 250 V
- Frequency (Hz)
- 50/60 Hz
- AC or DC
- AC/DC
- AC Max I.R./Breaking Capacity: I1
- 200 kA
- Connection/Terminal Type
- Blade
- L/R (ms)
- 10 ms
- Weight
- 0.95 lb
Rated voltage DC UL500 V
Ampere Rating200 A
MountingClip
Connection/Terminal MaterialSilver-Plated Copper
Body/Insulating MaterialGMG
Length7.13 in
