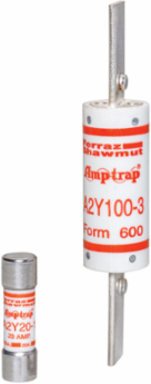

Mersen A2Y225-3 Form 600 Fuse 250V 225A Type 3 Blade Mount, 2 Inch Diameter
Mersen A2Y225-3 Form 600 Fuse 250V 225A Type 3 Blade Mount, 2 Inch Diameter
- MPN: A2Y225-3
- UPC: 782001907150
- PPN: FER-A2Y225-3
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1449.12/ EA
Description
Mersen Form 600 fuses are the original current-limiting fuses, predating all the standards. Their 500V DC rating (through 600A) is a useful feature for special fusing applications. Form 600 fuses provide a high degree of current limitation in AC and DC applications. Types 1 and 3 are dimensionally interchangeable with Class H and K fuses. Types 4 and 5 have unique rejection dimensions and are not interchangeable.
Specifications
Specifications
- Rated voltage AC UL
- 250 V
- Frequency (Hz)
- 50/60 Hz
- AC or DC
- AC/DC
- AC Max I.R./Breaking Capacity: I1
- 200 kA
- Connection/Terminal Type
- Blade
- L/R (ms)
- 10 ms
- Weight
- 1.94 lb
Rated voltage DC UL500 V
Ampere Rating225 A
MountingClip
Connection/Terminal MaterialSilver-Plated Copper
Body/Insulating MaterialGMG
Length8.63 in
