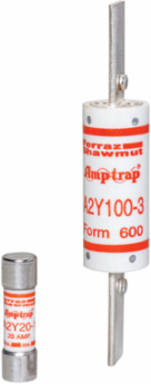

Mersen A2Y400-3 Form 600 Fuse 250V 400A DC Blade Mount, 2 Inch Diameter, Clip Mount
Mersen A2Y400-3 Form 600 Fuse 250V 400A DC Blade Mount, 2 Inch Diameter, Clip Mount
- MPN: A2Y400-3
- UPC: 782001907198
- PPN: FER-A2Y400-3
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1368.89/ EA
Description
Mersen Form 600 fuses are the original current-limiting fuses, predating all the standards. Their 500V DC rating (through 600A) is a useful feature for special fusing applications. Form 600 fuses provide a high degree of current limitation in AC and DC applications. Types 1 and 3 are dimensionally interchangeable with Class H and K fuses. Types 4 and 5 have unique rejection dimensions and are not interchangeable.
Specifications
Specifications
- Rated voltage AC UL
- 250 V
- Frequency (Hz)
- 50/60 Hz
- ROHS Compliant
- Yes
- Mounting
- Clip
- Connection/Terminal Material
- Silver-Plated Copper
- Body/Insulating Material
- GMG
- Length
- 8.63 in
Rated voltage DC UL500 V
Ampere Rating400 A
AC or DCAC/DC
AC Max I.R./Breaking Capacity: I1200 kA
Connection/Terminal TypeBlade
L/R (ms)10 ms
Weight1.94 lb
