Schneider Electric NSYSPF7100 Front & rear plinth, PanelSeT SFN, Spacial SF, Spacial SM, for electrical enclosure W700mm, plinth H100mm

Front & rear plinth, PanelSeT SFN, Spacial SF, Spacial SM, for electrical enclosure W700mm, plinth H100mm
Front & rear plinth, PanelSeT SFN, Spacial SF, Spacial SM, for electrical enclosure W700mm, plinth H100mm
  • MPN: NSYSPF7100
  • PPN: SCH-NSYSPF7100

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$121.54/ EA

Description

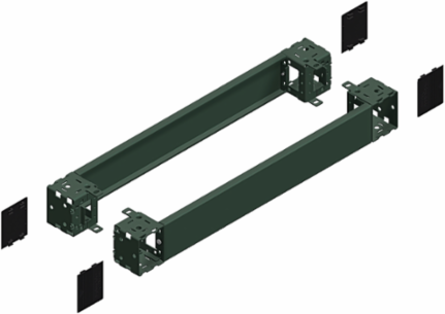

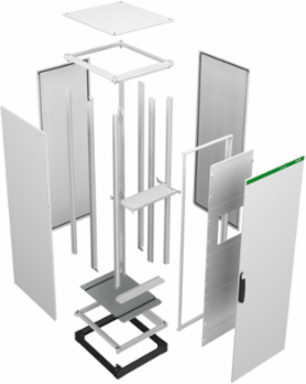

Plain front and back plinth panels for PanelSeT, PanelSeT and PrismaSeT electrical enclosures. The product is made of folded sheet steel. It is suitable for enclosures with a nominal width of 700 mm and its height is 100 mm. The set contains 4 corners with its covers, 1 front panel, 1 rear panel and the fixing elements. The color is grey RAL7022. The ingress protection rating is IP30 (complete plinth) and the mechanical protection rating is IK10. The permanent permissible load is 1300kg. Anti-corrosion protection is ensured by an epoxy-polyester powder coating. .

Specifications

Physical Attributes

Color
Gray RAL 7022)

Important Information Attributes

Persona Type Ids
LC, OM, OM8, PB, SI
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Device Composition
fixing elements, 4 corner cover, 1 front panel, 1 rear panel, 4 corner
Carbon Footprint Of The Distribution Phase A4
1.532478848, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5
1.765224319, 2 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6
0 kg CO2 eq., 0
Local Publishable Date
2026-04-15
Stocking Flag
Y
Scope Perimeter
At least in Europe
Reach Full Compliance Status
Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive
Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status
Compliant By Exemption
Rohs Eur Full Compliance Status
Compliant By Exemption
China Rohs Label
7
Without Single Use Plastic
No
Tier Id
2
Function Option Id
STANDARD
Product Kit Identifier
N
Energy Efficiency Optimized
False
Mounting Support
plinth side panels
Product Availability
Non-Stock - Not normally stocked in distribution facility
Range
PanelSeT
Software Version
v5.9.4
Sustainable Packaging
No
Accessory Separate Part Category
enclosure accessory
Warranty In Months
18
Database Version
2022-01
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
Functional-unit Description
Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
Functional-unit Unit
unit
Energy Model - Manufacturing [A1-a3]
Electricity Mix; Production mix; Low voltage; FR
Offer Owner Code
190789
Height Nominal
100 mm
Width Nominal
nominal: 700 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Carbon Footprint Of The End Of Life Phase C1 To C419 kg CO2 eq., 18.71509778
Carbon Footprint Of The Manufacturing Phase A1 To A335 kg CO2 eq., 34.5914881
Local Data StatusPublishable
Return IndicatorN
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1912
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Device Applicationmulti-purpose
Fixing Modeby fixing element - on structure
Permanent Permissible Load1300 kg
Product Or Component Typeplinth front
ReturnabilityNo
Surface Finishepoxy-polyester powder
Total Lifecycle Carbon Footprint57 kg CO2 eq.
Silicone FreeNo
Pep CodeENVPEP1109023EN
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Recyclability Potential, In %98
Pn1
Height Useful100 mm

Environment Attributes Main

Take Back
No
China Rohs Regulation
X
Silicon Free
No
Environmental Disclosure
ENVPEP1109023EN
Ip Degree Of Protection
IP20 complete plinth)
Packaging Without Single Use Plastic
No
Pep Code
ENVPEP1109023EN
Pcr Version
PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep
Independent internal review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Carbon Footprint56.60428905
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29

General Attributes

Product Or Component Type
plinth front

ETIM

ETIM 8
EC000721
ETIM 9EC000721

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months

Specifications

Height
3.94 in
Country of OriginSpain, France, India, Tunisia
