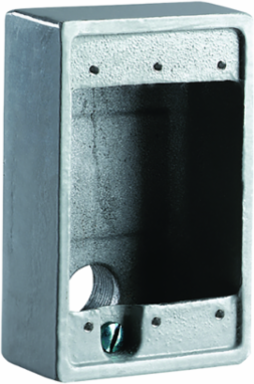

Killark FSA-2SU6 Aluminum Shallow Device Box, 3/4 Inch Hub, 18.0 Cubic Inches, Wet Location Suitable
- MPN: FSA-2SU6
- UPC: 783936122045
- PPN: HBL-FSA-2SU6
- UNSPSC: 39121308
CAD
$103.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
FSA Series - Aluminum Shallow Dead-End Cast Device Box - Hub Size 3/4 Inch - Volume 18.0 Cubic Inches
Features
- Tapered threads (NPT with integral bushings)
- Internal grounding screw
- Mounting feet are provided as standard
- Suitable for use in wet locations when used with gasket covers
- Cast iron is suitable for concrete use
- Tapered threads (NPT with integral bushings). Internal grounding screw. Single gang style. Suitable for use in wet locations when used with gasket covers. For use with FS-style covers (see pages F40-F42).
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Hub Size | 3/4" |
| Color | Gray |
| Special Features | Tapered threads (NPT with integral bushings). Internal grounding screw. Single gang style. Suitable for use in wet locations when used with gasket covers. For use with FS-style covers (see pages F40-F42). |
| Finish Type | Powder Epoxy Paint |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | DEVICE BOX, 3/4" FS, AL, SHALLOW, TYPE A |
| Harmonization Code | 7616995190 |
| Lead Time | 42 wk |
| Order Multiple | 1 EA |
| Sub Class Code | D30D233 |
| Hub Pattern | Dead-End |
| Series | F Series |
| BOX SIZE | 4.000x11.750x7.250 (in) |
| Carton - Number of Sub Packs | 5 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936122045 |
| Master Pack Description | Each |
| Width | 2.875 in |
|---|---|
| Application | Accommodates wiring devices and provides opening to splice, tap, or pull conductors. Provide access to conductors for maintenance and future system changes. |
| Number of Outlet | 1 |
| Type | Device Box |
| Number Of Outlets | 1 |
| Class Code | D30 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| Gross Weight with Packaging | 0.73 |
| Material | Aluminum, Copper Free (less than 4/10 of 1%) |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 3.900 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 5 EA |
| NAICS Code | 3359326103 |
