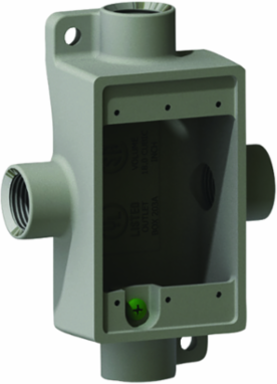

Killark FSX-2M FSX Type Cast Device Box - Iron, 3/4 Inch Hub Size, 8.75 x 5 x 2.75 Inch, 1 Outlet
- MPN: FSX-2M
- UPC: 783936049007
- PPN: HBL-FSX-2M
- UNSPSC: 39121308
CAD
$176.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
FSX Series Fittings - Iron - FSX Type Cast Device Box - Shallow - Hubsize 3/4 In - Volume 18.0 Cu In
Features
- Tapered threads (NPT with integral bushings)
- Internal grounding screw
- Mounting feet are provided as standard
- Suitable for use in wet locations when used with gasket covers
- Cast iron is suitable for concrete use
- Tapered threads (NPT with integral bushings). Internal grounding screw. Single gang style. Suitable for use in wet locations when used with gasket covers. Cast iron is suitable for concrete use. For use with FS-style covers (see pages F40-F42).
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Height | 2.75 in |
| Length | 8.75 in |
| Color | Gray |
| Size | 8.75 in x 5 in x 2.75 in |
| Type | Device Box |
| Finish Type | Powder Epoxy Paint |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | 3/4" FS BOX SHAL. "X" IRON |
| Harmonization Code | 7326908688 |
| Lead Time | 42 wk |
| Order Multiple | 1 EA |
| Sub Class Code | D30D233 |
| Gross Weight with Packaging | 2.55 |
| UL File Number | E3397 |
| Series | F Series |
| BOX SIZE | (in) |
| Master Pack Description | Each |
| Dimensions | 8.75 in x 5 in x 2.75 in |
|---|---|
| Hub Size | 3/4" |
| Application | Accommodates wiring devices and provides opening to splice, tap, or pull conductors. Provide access to conductors for maintenance and future system changes. |
| Number of Outlet | 1 |
| Special Features | Tapered threads (NPT with integral bushings). Internal grounding screw. Single gang style. Suitable for use in wet locations when used with gasket covers. Cast iron is suitable for concrete use. For use with FS-style covers (see pages F40-F42). |
| Width | 5 in |
| Number Of Outlets | 1 |
| Class Code | D30 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| CSA File Number | LR11852 |
| Hub Pattern | FSX |
| Material | Iron |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936049007 |
| NAICS Code | 3359326103 |
