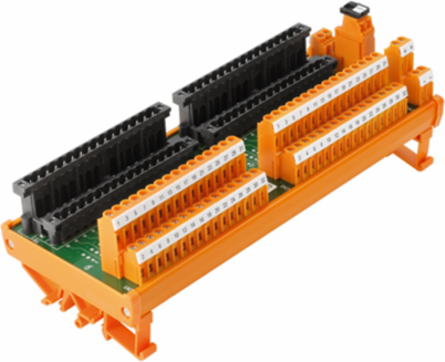

Weidmuller 1221550000 FTA-C300-32DIOHV-S
- MPN: 1221550000
- PPN: WDM-1221550000
CAD
$499.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Interface, RS
Documentation & Downloads
Specifications
General Data
- LED status display per channel
- No
- Fuse per channel
- No
- Power supply fuse
- 630 mA
Type of test pointNo
LED status of the supply voltageyellow
Approvals
- Approvals
- CE, EAC
ROHSConform
Dimensions And Weights
- Length
- 216 mm
- Width
- 87 mm
- Height
- 65 mm
- Net weight
- 403 g
Length (inches)8.504 inch
Width (inches)3.425 inch
Height (inches)2.559 inch
Supply Connection
- Clamping range, min.
- 0.13 mm²
Clamping range, max.6 mm²
Insulation Coordination (En50178)
- Rated insulation voltage
- < 250 V AC
- Pollution severity level
- 2
- Insulation test voltage
- 1.2 kVAC
Surge voltage categoryII
Pulse voltage test (1,2/50μs)2 kV
Ratings Data
- Operating voltage
- ≤ 250 V AC
Max. current per channel1 A
Connection Data
- Connection on control side
- SLDV-THR 5.08
Connection Field
- Clamping range, min.
- 0.13 mm²
Clamping range, max.6 mm²
Classifications
- ETIM 6.0
- EC002780
- eClass 9.0
- 27-14-11-52
- eClass 10.0
- 27-14-11-52
ETIM 7.0EC002780
eClass 9.127-24-22-16
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature, max.
- 50 °C
- Storage temperature, max.
- 60 °C
- Operating temperature
- -25...50 °C
Operating temperature, min.-25 °C
Storage temperature, min.-40 °C
Storage temperature-40...60 °C
