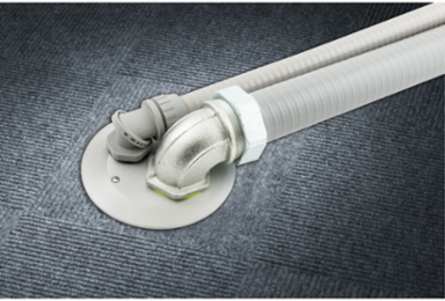

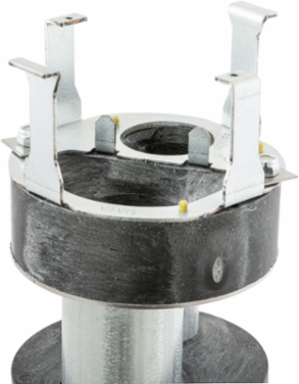

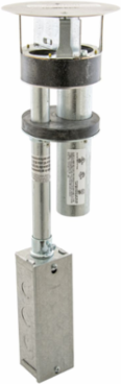

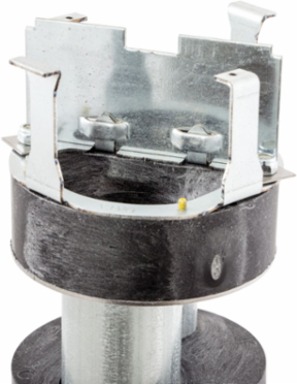

Hubbell Wiring Device-Kellems S1R4PTAVFITJ Furniture Feed 4 Inch Fire-Rated Poke-Through with Junction Box
Hubbell Wiring Device-Kellems S1R4PTAVFITJ Furniture Feed 4 Inch Fire-Rated Poke-Through with Junction Box
- MPN: S1R4PTAVFITJ
- UPC: 783585546469
- PPN: HBL-S1R4PTAVFITJ
- UNSPSC: 39121307
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$671.14/ EA
Description
Fire Rated Poke Throughs, Furniture Feed 4" Series, Through Floor Fitting with Junction Box
Features
- Multi-Service Furniture Feed FRPT
- Up to 4 Hour Fire Rating
- (1) 3/4"EMT for Power and (1) 1½" EMT for Data
- Includes S1FRPTJB Junction Box
- Step Down Installation
- Complies with ADA
Specifications
Specifications
- Country of Origin
- United States
- Width
- 9.200 in
- Cable Entry
- Threaded Hubs
- Standard
- cULus Listed;Meets ADA Standards;UL 514A Listed
- Engineering Drawing 2 Display Text
- 4 INCH RECESSED FRPT AutoCAD Drawing
- General Literature Asset 1 Display Text
- Hubbell SystemOne 4 Inch Solutions
- Style
- FRPT Kits
- Freight Class Code
- 06111001
- Image Actual Or Representative
- A
- Sub Class Code
- A36A352
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 5.850 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1
- Pallet - GTIN - Package
- 70783585546468
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Core Hole4 Inch
Industry Standard(s)cULus Listed;Meets ADA Standards;UL 514A Listed
Number of Outlet(1) 3/4" & (1) 1½" Threaded Hub Multi-Service
Engineering Drawing 1 Display TextS1R4PTAVFITJ AutoCAD Drawing
Engineering Drawing 3 Display Text4 INCH SOLUTION Drawing
Number Of Outlets(1) 3/4" & (1) 1½" Threaded Hub Multi-Service
Class CodeA36
Harmonization Code7616995190
MSDS FlagNo
Material - Mounting HardwareStep-Down Installation
BOX SIZE9.300x17.700x9.200 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00783585546469
Case Weight5.850 lb.
Pallet Height46.500 in
Pallet Weight321.750 lb.
