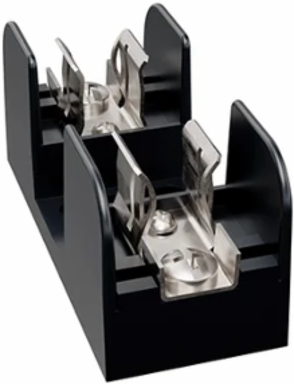

Mersen 20321 Class H/K 1-Pole Fuse Base 250V 30A with Pressure Plate & GFPC Insulator
- MPN: 20321
- UPC: 782001758561
- PPN: FER-20321
CAD
$18.62
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Mersen Class H, K and R fuse blocks accommodate all Class H, K and R 250 and 600V power fuses. A choice of screw, pressure plate, box and special order stud connectors fit a wide range of stranded or solid copper or aluminum wire. Insulators are either molded glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V. 30, 60 and 100A fuse blocks feature a unique adder block which can be snapped onto 1-, 2- or 3-pole blocks to form multipole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tinplated copper, with a choice of spring reinforced or nonspring reinforced clips in 30A and 60A. Clips 100A and above are spring reinforced.
Features
- This open-style fuse block is custom-designed to accept standard Class H and Class K fuses rated up to 30 Amps, such as Mersen OT, RF, A2Y, OTN, CRN, and NRN series models. It provides a highly stable mechanical base for your circuit layouts, ensuring a secure fit that keeps your fuses firmly seated even under constant machine vibrations.
- This 1-pole block safely handles a maximum of 30 Amps at 250V AC or DC. It features a Short Circuit Current Rating (SCCR) up to 50kA when paired with Class K current-limiting fuses, providing critical, localized fault management to shield downstream control transformers, solenoids, and electronic power supplies.
- Molded from high-impact, glass-filled polycarbonate (GFPC), the block insulator provides exceptional structural rigidity and verified dielectric strength exceeding 2500V.
Documentation & Downloads
Specifications
Key Specifications
| Rated voltage AC UL | 250 V |
|---|---|
| Frequency (Hz) | 50/60 Hz |
| ROHS Compliant | Yes |
| Fuse Class | Class H/K |
| Fuse Type/Class | Class H/K |
| Fuse Installation Method | Clip-in |
| Max Fuse Rating | 30 A |
| Body/Insulating Material | Glass Filled Polycarbonate |
| Length | 3 in |
| Weight | 0.14 lb |
| Rated voltage DC UL | 250 V |
|---|---|
| Ampere Rating | 30 A |
| AC or DC | AC/DC |
| Short Circuit Current Rating (SCCR) | 50 kA |
| Number of Poles | 1-Pole |
| Torque Rating | 20 lb-in |
| Installation Mounting | Direct Screw Mount |
| Width | 1.25 in |
| Height | 1.38 in |
