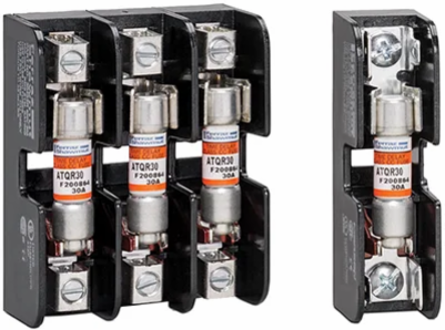

Mersen 30322 Midget Fuse Base 600V 30A 2-Pole with Pressure Plate & Reinforced Clip
- MPN: 30322
- UPC: 782001759995
- PPN: FER-30322
CAD
$15.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Mersen midget fuse blocks accommodate all 30 ampere 1-1/2” x 13/32” midget fuses. Class CC fuse blocks accommodate all 30 ampere Class CC fuses. A choice of box, screw, or pressure-plate connectors fit a wide range of stranded or solid copper wire. Insulators are glassfilled polycarbonate (GFPC) with verified dielectric strength in excess of 2500V. Fuse blocks feature a unique adder block which can be snapped onto 1-, 2- or 3-pole blocks to form multi-pole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tin-plated copper alloy.
Features
- This Mersen 30322 unit features a dedicated 2-pole open-style layout, allowing you to secure two separate electrical lines simultaneously within a single, space-saving footprint. It is engineered specifically for commercial and industrial control loops where isolating or protecting dual-phase lines is mandatory for safe branch circuit management.
- Built specifically to accommodate standard 10x38mm (1-1/2" x 13/32") Midget-class supplemental fuses, this block ensures an exact physical fit with zero terminal slip. It is natively compatible with industry-standard Mersen series like ATQ, ATM, TRM, and OTM, eliminating comparison confusion and saving valuable diagnostic time during field integration.
- Rated for up to 30 Amps at 600VAC/VDC, this robust block handles high-capacity sub-panels and motor control circuits without breaking a sweat. It delivers a short-circuit current rating (SCCR) up to 100kA depending on your selected fuse, protecting sensitive downstream PLCs and automation equipment from costly overcurrent damage.
- Equipped with high-conductivity, tin-plated copper alloy pressure plates alongside double quick-connect terminals, this block accepts 14 to 10 AWG solid or stranded copper wire. The multi-option terminal setup allows for rapid crimp-on or bare-wire terminations, while the uniform torque rating of 20 in-lbs ensures a vibration-resistant, low-resistance electrical pathway over long operational lifecycles.
- The base is molded from premium, glass-filled polycarbonate (GFPC) insulation capable of withstanding extreme thermal environments up to 125°C. This industrial-grade material features a verified dielectric strength exceeding 2500V, providing structural rigidity and reliable phase isolation to mitigate the risk of flashovers in tightly packed enclosures.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC/DC
- Fuse Size
- 1.6 in width x 1.31 in height x 3.04 in length
- Fuse Type
- Midget
- Max Fuse Rating
- 30 A
- Torque Rating
- 20 lb-in
- Body/Insulating Material
- Glass Filled Polycarbonate
- Fuse Clip Material
- Tin-plated Copper Alloy
- Weight
- 0.23 lb
Amperage30 A
Poles2
Short Circuit Current Rating (SCCR)10 to 100 kA (dependent on fuse rating)
Fuse Installation MethodClip-in
Installation MountingScrew Mount or DIN Rail
Dielectric Strength>2500 V
Frequency50/60 Hz
ROHS CompliantYes
