Thomas & Betts MCAN-5B15-6E2 FUSE CANISTER,15KV,600-200A ELBOW
- MPN: MCAN-5B15-6E2
- UPC: 783786531349
- PPN: T-B-MCAN-5B15-6E2
- UNSPSC: 26121630
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

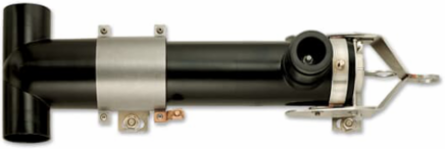

Fuse Canister for Fuses HTFX2340065 and HTFX230080 25.80 inches long. Customer specific modifications 8.3kV, 65-80 Amps. 600 Amp Elbow Connector on one end and 200 Amp Bushing Well on the other.
Specifications
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Additional Information
| Application | Padmount, Subsurface and Vault Applications |
|---|---|
| Effective Date | 20070531 |
| Product Name | ELECTRICAL FUSE,>1000V |
| Size | 28.21 inch length |
| Standards | ANSI C37.40, ANSI C37.41, ANSI C37.47, ANSI/IEEE 386 |
| Brand / Label | Elastimold |
|---|---|
| Material | EPDM Rubber Housing |
| Product Type | Molded Canister Fuses |
| Special Functions | Fuses are Fully Sealed and Submersible |
| Temperature Range | -30 to + 65 °C |
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 1779 >> Cable accessories |
|---|
