Thomas & Betts MCAN-5B-25-26 FUSE CANISTER, 25 KV, 2.25X14.37
- MPN: MCAN-5B-25-26
- UPC: 783786442966
- PPN: T-B-MCAN-5B-25-26
- UNSPSC: 26121630
Quote Required
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

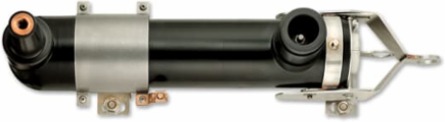

Molded Fuse Canister, 25 Kv, 2.25 X 14.37 X 14.37. 15.5kV, 3-50 Amps. 200 Amp Bushing Well on End, and 600 Amp Bushing for Main Bushing.
Specifications
Additional Information
| Application | Padmount, Subsurface and Vault Applications |
|---|---|
| Effective Date | 20041116 |
| Product Name | ELECTRICAL FUSE,>1000V |
| Special Functions | Fuses are Fully Sealed and Submersible |
| Temperature Range | -30 to + 65 °C |
| Brand / Label | Elastimold |
|---|---|
| Material | EPDM Rubber Housing |
| Product Type | Molded Canister Fuses |
| Standards | ANSI C37.40, ANSI C37.41, ANSI C37.47, ANSI/IEEE 386 |
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 1779 >> Cable accessories |
|---|
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
