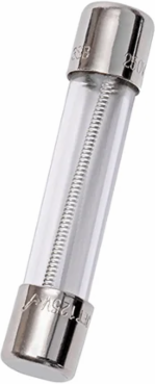

Mersen GDL1/2 Time-Delay Fuse 250V 0.5A 1/4 Inch x 1-1/4 Inch Glass Body
- MPN: GDL1/2
- UPC: 782001763152
- PPN: FER-GDL1/2
CAD
$2.17
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Up to 250V, Time Delay, Glass, 1/4" x 1 1/4"
Features
- This GDL series fuse is precisely calibrated for a 1/2-Amp (500mA) capacity at 250V AC. It provides highly localized overcurrent protection, making it an essential component for isolating faults in sensitive electronic circuits, pilot lights, and low-voltage control loops before upstream components suffer collateral damage.
- Engineered with time-delay characteristics, this fuse safely rides through harmless, temporary current surges and inductive inrush currents typical of small solenoids, control transformers, and fan motors. This specialized delay curve eliminates costly nuisance trips during equipment startup while maintaining strict protection against sustained overloads.
- Measures exactly 1/4 inch in diameter by 1-1/4 inches in length (6.3mm x 32mm).
- Constructed with a crystal-clear glass body, this fuse permits instant visual inspection.
Documentation & Downloads
Specifications
Key Specifications
- Rated voltage AC UL
- 250 V
- ROHS Compliant
- Yes
- Fuse Class
- Supplemental
- Fuse Size
- 6.3x32
- Connection/Terminal Type
- Ferrule
- Length
- 1.25 in
Ampere Rating0.5 A
AC or DCAC
Speed/CharacteristicTime Delay
MountingClip
Body/Insulating MaterialGlass
Weight0.01 lb
