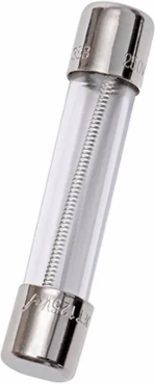

Mersen GDL8 Time-Delay Fuse 250V 8A 6x32mm 1/4 Inch x 1-1/4 Inch Glass Body
- MPN: GDL8
- UPC: 782001763374
- PPN: FER-GDL8
CAD
$2.17
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Up to 250V, Time Delay, Glass, 1/4" x 1 1/4"
Features
- Engineered with an inductive time-delay characteristic, this 1/4 in times 1-1/4 in (6.3 times 32 mm) glass tube fuse safely tolerates short-duration, high-inrush current spikes. It provides ideal protection for small motors, solenoids, and inductive transformer circuits by riding through normal operational surges while still delivering rapid short-circuit interruption when a true electrical fault occurs.
- Featuring a crystal-clear glass housing, this fuse allows for instant visual inspection of the internal filament link. This transparency eliminates the need for tedious, repetitive multimeter testing during a system failure, enabling facility technicians and field electricians to perform rapid visual troubleshooting and swap out compromised lines immediately.
- Rated for continuous duty at 8 Amps and up to 250 Volts AC, this fuse is perfectly sized for safeguarding supplementary control panels, commercial appliances, and industrial instrumentation. Its precise calibration prevents downstream component damage by safely isolating localized overcurrents before they can migrate to your primary distribution lines.
- Boasting dual-certified interrupting ratings (200A at 250V AC and 10kA at 125V AC), this midget fuse provides dependable short-circuit containment across multiple voltage thresholds. This wide operating window allows electrical contractors and maintenance technicians to safely deploy the same fuse across varying control-loop configurations, mitigating dangerous arcing or housing rupture during catastrophic electrical faults.
Documentation & Downloads
Specifications
Additional
- Amperage
- 8 A
- Speed/Characteristic
- Time Delay
- Length
- 1.25 in
- Body Material
- Glass
- Connection Type
- Ferrule
- Compliance
- RoHS Compliant
Voltage250 V AC
Fuse Size6.3x32 mm
Fuse ClassSupplemental
MountingClip
Weight0.01 lb
AC or DCAC
