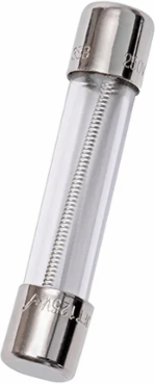

Mersen GDL5 Time-Delay Fuse 250V 5A Glass 1/4 Inch x 1-1/4 Inch
- MPN: GDL5
- UPC: 782001763336
- PPN: FER-GDL5
CAD
$2.17
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Up to 250V, Time Delay, Glass, 1/4" x 1 1/4"
Features
- Featuring standard 6.3x32mm cylindrical sizing and ferrule terminals, this miniature glass fuse is designed for a secure, drop-in fit into any compatible clip-mount holder. Replacing your blown fuse with OEM-matched dimensions eliminates loose connections, ensuring reliable power restoration for your control boards, HVAC equipment, and consumer appliances.
- Engineered with a slow-blow (time-delay) element, this fuse safely absorbs temporary, harmless power surges—like the initial inrush current from a small motor or power supply booting up. This critical feature eliminates frustrating nuisance blowing, keeping your machinery running smoothly while still delivering absolute protection against sustained, destructive overloads.
- Strictly rated to handle 5 Amps at up to 250 volts, this Mersen miniature fuse provides precision overcurrent defense for low-current electrical applications. The transparent glass body allows technicians and DIYers to instantly perform a visual inspection of the internal filament, taking the time-consuming guesswork out of troubleshooting a dead circuit.
- Meeting rigorous North American safety standards, this supplemental fuse is both UL Recognized and CSA Approved for highly reliable performance. Built to safely clear faults with a 200A short circuit interrupt rating (IR) without the glass shattering, it safeguards expensive circuit board components from catastrophic failure and ensures your repair work remains fully code-compliant.
Documentation & Downloads
Specifications
Additional
- Voltage
- 250 V
- Speed/Characteristic
- Time Delay
- Fuse Size
- 6.3x32 mm
- Connection Type
- Ferrule
- Fuse Class
- Supplemental
- RoHS Compliance
- Yes
Amperage5 A
Length1.25 in
MountingClip
MaterialGlass
Weight0.01 lb
CertificationsUL Listed, CSA Certified
