Bussman

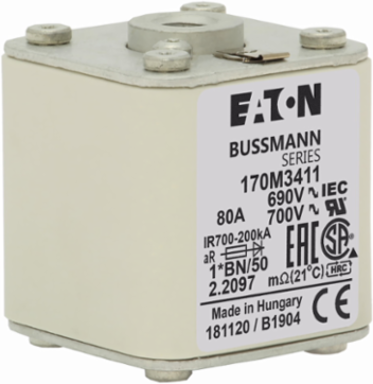

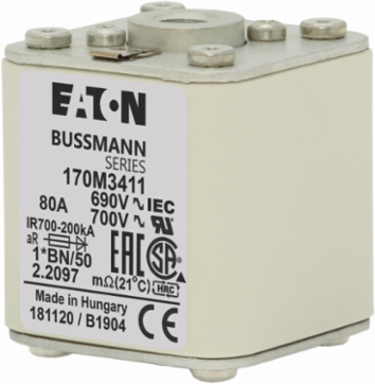

Bussman 170M3411 High Speed Fuse-link 80 A AC 690 V Compact Size 1 45 mm x 59 mm x 51 mm aR

High Speed Fuse-link 80 A AC 690 V Compact Size 1 45 mm x 59 mm x 51 mm aR
High Speed Fuse-link 80 A AC 690 V Compact Size 1 45 mm x 59 mm x 51 mm aR
High Speed Fuse-link 80 A AC 690 V Compact Size 1 45 mm x 59 mm x 51 mm aR
High Speed Fuse-link 80 A AC 690 V Compact Size 1 45 mm x 59 mm x 51 mm aR
  • MPN: 170M3411
  • UPC: 051712255981
  • PPN: BUS-170M3411

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$482.38/ EA

Specifications

Specifications

Fuse indicator
Top fuse status indicator
Construction size
Other
Insulated metal gripping lugs (IMGL)
No
Amperage Rating
80 A
Watt losses
21 W
Fuse shape
Square body, flush end contacts
Pre arc (I2T)
185
Application
semiconductor protection
Packaging type
Standard
Interrupt rating200 kAIC
Clearing (I2T)1250 at 660 V
Mounting methodFlush
Utilization categoryaR (accompanied semiconductor protection)
TypeFuse
ClassClass aR
Voltage rating690 V
Voltage typeAC

General

UPC
051712255981
Product Length/Depth
155 mm
Product Width
90 mm
Warranty
Not Applicable
Certifications
UL Recognized
EAN5704057021524
Product Height45 mm
Product Weight41 g
CompliancesCE Marked

Downloads
