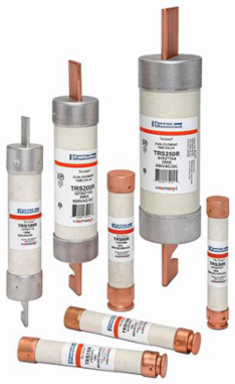

Mersen TRS125RID Fuse Tri-Onic 600V 125A Class RK5 Time-Delay with SmartSpot Indicator
- MPN: TRS125RID
- UPC: 782001415198
- PPN: FER-TRS125RID
CAD
$217.33
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Tri-Onic TRS-R current-limiting time-delay fuses are engineered for overcurrent protection of motors, transformers, service entrance equipment, feeders and branch-circuits. The time-delay characteristics of the TRS-R safely handle harmless starting currents and inrush currents associated with today's motors and transformers.
Specifications
Key Specifications
| Rated voltage AC UL | 600 V |
|---|---|
| Frequency (Hz) | 50/60 Hz |
| ROHS Compliant | Yes |
| Fuse Class | Class RK5 |
| Mounting | Clip |
| Indication System | Yes |
| Connection/Terminal Material | Tin-Plated Copper |
| Body/Insulating Material | PolyTube |
| Weight | 1.32 lb |
| Rated voltage DC UL | 600 V |
|---|---|
| Ampere Rating | 125 A |
| AC or DC | AC/DC |
| Speed/Characteristic | Time Delay |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Indication System Type | SmartSpot® |
| Connection/Terminal Type | Blade |
| Length | 9.63 in |
