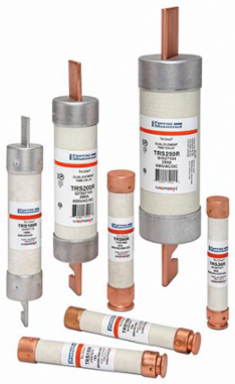

Mersen TRS80RID Fuse Tri-Onic 80A Time-Delay Class RK5 600V with SmartSpot Indicator
Mersen TRS80RID Fuse Tri-Onic 80A Time-Delay Class RK5 600V with SmartSpot Indicator
- MPN: TRS80RID
- UPC: 782001415150
- PPN: FER-TRS80RID
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$108.64/ EA
Description
Tri-Onic TRS-R current-limiting time-delay fuses are engineered for overcurrent protection of motors, transformers, service entrance equipment, feeders and branch-circuits. The time-delay characteristics of the TRS-R safely handle harmless starting currents and inrush currents associated with today's motors and transformers.
Specifications
Specifications
- Rated voltage AC UL
- 600 V
- Frequency (Hz)
- 50/60 Hz
- AC or DC
- AC/DC
- Speed/Characteristic
- Time Delay
- AC Max I.R./Breaking Capacity: I1
- 200 kA
- Indication System Type
- SmartSpot®
- Connection/Terminal Type
- Blade
- Length
- 7.88 in
Rated voltage DC UL600 V
Ampere Rating80 A
Fuse ClassClass RK5
MountingClip
Indication SystemYes
Connection/Terminal MaterialTin-Plated Copper
Body/Insulating MaterialPolyTube
Weight0.628 lb
