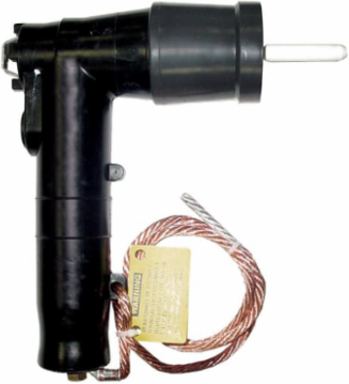

Thomas & Betts 168AFLR3-D0270 FUSED ELBOW HOUSING 8.3KV DIR TEST
- MPN: 168AFLR3-D0270
- UPC: 783786793846
- PPN: T-B-168AFLR3-D0270
- UNSPSC: 39121421
CAD
$2826.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Direct Test Ports, Large Housing, Cable Insulation Diameter 0.890 inch - 1.220 inch / 25-31mm, Aluminum Conductor size 4/0 AWG Stranded Compressed.
Specifications
Additional Information
- Application
- 8.3kV, 65 and 80 Amps
- Color
- Black
- Effective Date
- 20081201
- Material
- Housing EPDM Rubber ; Lug Aluminum
- Product Type
- Fuse Housing
- Special Functions
- Two Direct Test Ports, Large Housing
- Temperature Range
- -40 to +65 °C
Brand / LabelElastimold
Connection TypeCompression
Insulation MaterialEPDM Rubber
Product NameELECTRICAL CONNECTOR,>1000V
SizeApproximately 8-7/8 inch wide x 21 inches long
StandardsIEEE 386 Standard
Voltage Rating15.5 kV
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
