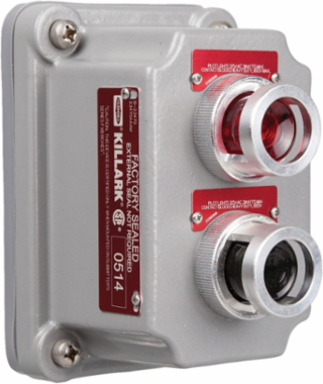

Killark FXCS-0B30RLD-GLD Aluminum Double LED Pilot Light Cover 120V, NEMA 3, Weatherproof
- MPN: FXCS-0B30RLD-GLD
- UPC: 783936998428
- PPN: HBL-FXCS-0B30RLD-GLD
CAD
$1144.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
FXCS Series - Aluminum Double 120V Pilot Light Cover With Device -Factory Sealed - Red/Green Lenses With Nameplates To Be Specified-LED
Features
- Eliminates external sealing requirements.
- Lower installation cost.
- NEMA 3 weatherproof.
- Color coded wiring with more wiring space for easier field installation.
- Stainless steel captive screws for cover assembly.
- Lockout accessory available must be factory installed.
- Ground boss for grounding in the splice box.
- Device bodies and covers are copper-free cast aluminum alloy.
- Push button, selector switches and pilot light bodies are copper-free aluminum.
- Operating shaft in both push buttons and selector switches are stainless steel.
- Killark SEAL-X Series Factory Sealed Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.
Specifications
Key Specifications
- Country of Origin
- United States
- Color
- Red-Green
- Weight
- 3.20 lb.
- Amperage Rating
- 0.01 A
- Frequency Rating
- 50/60 Hz
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- DBL FACT SEALED PILOT LGT CVR REDGRN LED
- Harmonization Code
- 8531809051
- MSDS Flag
- No
- CSA File Number
- LR11714, LR11712
- UL File Number
- E53360, E12379
- Series
- FXCS Series
- BOX SIZE
- 0.000x0.000x0.000 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936998428
- NAICS Code
- 3359326103
Back Box TypeFXB
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
ActuatorDouble LED Pilot Light
ApplicationSEAL-X Series is used to prevent the igniting of external hazardous atmospheres by the enclosed arcing devices in such areas as: hazardous locations due to the presence of flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings
Nema Rating3
Class CodeD25
Freight Class Code06316009
Image Actual Or RepresentativeR
Sub Class CodeD25D250
Factory SealedFactory Sealed
MaterialCopper-free aluminum
Base Unit of MeasureEA
Carton - Gross Weight per Pack8.750 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Certifications
- EU RoHS Indicator
- Contact Manufacturer
