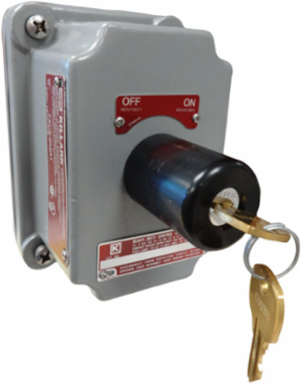

Killark FXCS-0K2A5A Aluminum Maintained Contact Keyed Selector Switch Cover - 2NO/2NC, NEMA 3
Killark FXCS-0K2A5A Aluminum Maintained Contact Keyed Selector Switch Cover - 2NO/2NC, NEMA 3
- MPN: FXCS-0K2A5A
- UPC: 783936960265
- PPN: HBL-FXCS-0K2A5A
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1867.43/ EA
Description
FXCS Series - Aluminum Maintained Contact 2-Position Keyed Selector Switch Cover With Device - Factory Sealed 2NO/2NC Contact- Keyed Alike
Features
- Eliminates external sealing requirements.
- Lower installation cost.
- NEMA 3 weatherproof.
- Color coded wiring with more wiring space for easier field installation.
- Stainless steel captive screws for cover assembly.
- Lockout accessory available must be factory installed.
- Ground boss for grounding in the splice box.
- Device bodies and covers are copper-free cast aluminum alloy.
- Push button, selector switches and pilot light bodies are copper-free aluminum.
- Operating shaft in both push buttons and selector switches are stainless steel.
- Killark SEAL-X Series Factory Sealed Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.
Specifications
Certifications
- EU RoHS Indicator
- Contact Manufacturer
Specifications
- Country of Origin
- United States
- Color
- Black
- Weight
- 3.14 lb.
- Actuator
- 2 Position Key Selector Switch
- Application
- SEAL-X Series is used to prevent the igniting of external hazardous atmospheres by the enclosed arcing devices in such areas as: hazardous locations due to the presence of flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings
- Nema Rating
- 3
- Class Code
- D25
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- Sub Class Code
- D25D250
- Factory Sealed
- Factory Sealed
- Material
- Copper-free aluminum
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 8.750 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5
Back Box TypeFXB
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
ActionMaintained
Amperage Rating10 A
Frequency Rating50/60 Hz
ARRA CompliantContact Manufacturer
Description - InvoiceF.S. CVR ASSY KEYED 2 POS SEL SWT MAINT
Harmonization Code8536509025
MSDS FlagNo
CSA File NumberLR11714, LR11712
UL File NumberE53360, E12379
SeriesFXCS Series
BOX SIZE0.000x0.000x0.000 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack00783936960265
