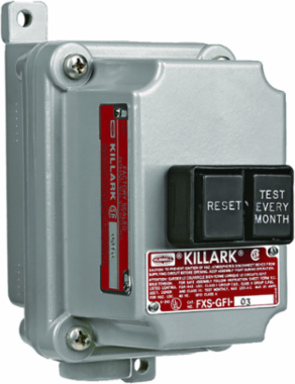

Killark FXS-GFIO3PL Aluminum Ground Fault Interrupter 20A 120Vac 60Hz 4-6mA Trip - NEMA 3
- MPN: FXS-GFIO3PL
- UPC: 783936198262
- PPN: HBL-FXS-GFIO3PL
CAD
$2348.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Aluminum Ground Fault Interrupter 20A 120Vac 60Hz 4-6mA Trip - NEMA 3
Documentation & Downloads
Specifications
Dimensions
| Depth | 5-3/8 |
|---|---|
| Height | 4.38 in |
| Width | 6 in |
| Gross Weight with Packaging | 3.2 |
|---|---|
| Length | 6.63 in |
Certifications and Compliance
| CSA File Number | LR11712 |
|---|---|
| UL File Number | E53360, E10501 |
| Nema Rating | 3 |
|---|
General
| Action | Push buttons |
|---|---|
| Ambient Temp. Range | UL: -25 to 40 ºC, CSA: -50 to 40 ºC, IEC: -20 to 40 °C |
| Back Box Type | FXB |
| Indicator(s) Type | Pilot Light |
| Series | FXS-GFI |
| UPC | 783936198262 |
| Actuator | Gound Fault Interupter |
|---|---|
| Application | FXS ground fault interrupters are designed to interrupt a circuit when a ground fault is detected on equipment which may be handled by personnel in hazardous locations. |
| Color | Gray |
| Number Of Poles | 2 |
| Type | Aluminum factory sealed ground fault interrupter cover assembly with pilot light |
Current Related
| Amperage Rating | 20 A |
|---|
| Frequency Rating | 50/60 Hz |
|---|
