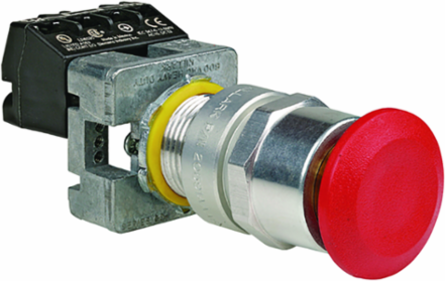

Killark GOM21-RM3C Aluminum Push Button Operator with Red Mushroom Button, 1NO/1NC, 6.75 Inch x 2.25 Inch x 2 Inch
Killark GOM21-RM3C Aluminum Push Button Operator with Red Mushroom Button, 1NO/1NC, 6.75 Inch x 2.25 Inch x 2 Inch
- MPN: GOM21-RM3C
- UPC: 783936224954
- PPN: HBL-GOM21-RM3C
- UNSPSC: 39122216
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1643.68/ EA
Description
Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified.
Features
- Operators are all aluminum except for certain movable parts which are stainless steel.
- All other parts such as screws are either stainless steel or plated steel.
- Threaded bodies are all 3/4”-14 NPSM thread.
- Control stations can be grouped into a single assembly thus reducing installation time and cost.
- Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified
Specifications
Specifications
- Number of Poles
- 1
- Special Features
- Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified
- Country of Origin
- MX
- Each - Width
- 2.250 in
- Height
- 2 in
- Width
- 2.25 in
- Actuator
- Mushroom Pushbutton
- Application
- G Series custom control panel operators are designed for use in hazardous locations when installed in suitable enclosures such as B7E, EXB, XJB, DB, SWB, and GCS Series boxes and B7, Y7 starter enclosures.
- Frequency Rating
- 50/60 Hz
- Type
- Push Button
- Description - Invoice
- RED MAINT SHORT PSH-PULL NO/NC
- Harmonization Code
- 8536509999
- Lead Time
- 10 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D25D250
- Gross Weight with Packaging
- 0.76
- Series
- GO Series
- BOX SIZE
- 2.000x6.750x2.250 (in)
- Master Pack Description
- Each
Size6.75 in x 2.25 in x 2 in
ARRA CompliantContact Manufacturer
Dimensions6.75 in x 2.25 in x 2 in
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups C, D;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Length6.75 in
ActionMaintained
Amperage Rating10 A
Contact Rating60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 0.55A INRUSH @ 125 VDC; 0.275A INRUSH @ 250 VDC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 0.55A BREAKING @ 125 VDC; 0.275A BREAKING @ 250 VDC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC; 10A CARRYING @ 600 VAC; 2.5A CARRYING @ 125 VDC; 2.5A CARRYING @ 250 VDC.
Number Of Poles1
Class CodeD25
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11714
UL File NumberE12379
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936224954
Certifications
- EU RoHS Indicator
- Contact Manufacturer
