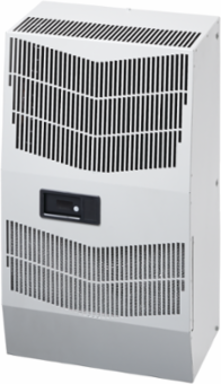

nVent Hoffman G280446G051 SpectraCool Indoor/Outdoor G28, 4000BTU 460V, Brushed, SS304
- MPN: G280446G051
- UPC: 783510210823
- PPN: HOF-G280446G051
- UNSPSC: 40101701
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
SpectraCool Air Conditioners deliver reliable enclosure cooling in full spectrum of environments. This SpectraCool Indoor/Outdoor G28, G280446G051 item is rated 4000BTU 460V with material of SS304 finish Brushed.
Features
- Attractive industrial design with minimal use of visible fasteners
- Level 1 Protection Includes: Protective coatings only applied to copper tubing and coils on the condenser (exterior facing) side as well as thermostat coatings
- Energy-efficient rotary compressor on most models
- Level 2 Protection Include: Everything that was coated in Level 1, plus protective coatings applied to the evaporator (interior facing ) side and an additional wrap around the thermostat
- Cleanable, reusable aluminum mesh filter included to protect coils for maximum cooling performance in dirty environments
- R407C, R513A or R134a refrigerants
- 115, 230 and 400/460 VAC 3-phase power input on most models
- Reliable mechanical thermostat on enclosure side of the unit
- All G-series come standard with two separate thermostats for cooling and heating when a heater is equipped
- Operating temperature range from -40 F/-40 C to 131 F/55 C
- Dust-resistant condenser coil allows the unit to be run filterless in most indoor applications
- Dual condenser-side air movers for performance redundancy on G52 and G57 models
- Galvanized or stainless steel cover for rugged factory and outdoor environments
- Exterior and partially recessed mounting options
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Nominal Capacity Watts | 1,435 |
| Corrosion Resistant | No |
| Number of Phases | 3 |
| Finish | Brushed #3 |
| Height (H) | 726 |
| Depth (D) | 259 |
| Mounting | Side wall |
| Max Current | 1.9 |
| Remote Access Control | No |
| Product Family | SpectraCool |
| Weight | 95 |
| Voltage Rating | 460 V |
| Amperage Rating | 1.3/1.4 Amp |
| Phase | 3 Ph |
| Nominal Capacity Btu/h | 4,900 |
|---|---|
| Refrigerant | R513A |
| Nominal Voltage | 460 |
| Material | Stainless Steel 304 |
| Thickness (T) | 1 |
| Width (W) | 432 |
| Outdoor Installation | Yes |
| Operating Temperature | 10 |
| Ambient Temperature | 10 |
| Protection Rating | NEMA Type 4X |
| NEMA Rating | 4X Watertight, corrosion-resistant |
| Sub Brand | SpectraCool |
| BTU Rating | 4,655 |
| Frequency Rating | 50/60 Hz |
