Bryant

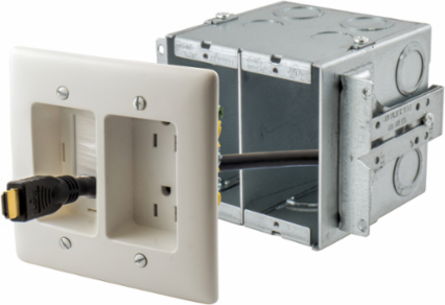

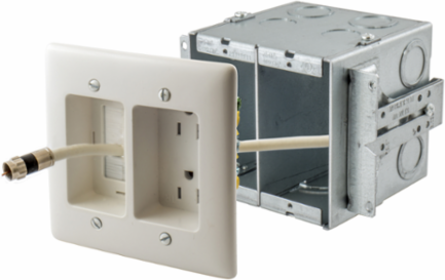

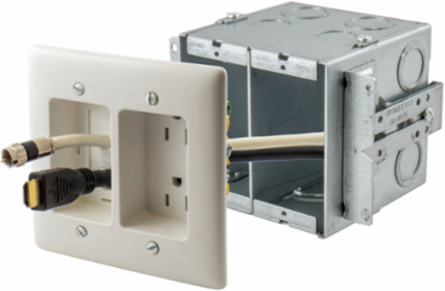

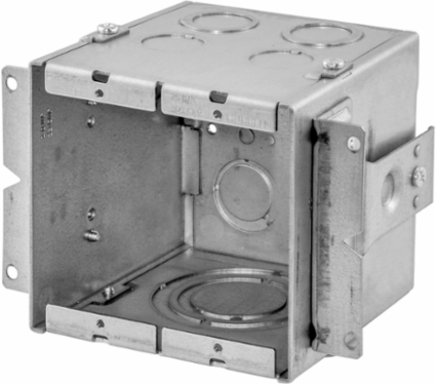

Bryant HBL985 2-Gang Gangable Wall Box, 4 Inch Depth, Pre Galvanized Steel Construction

2-Gang Gangable Wall Box, 4 Inch Depth, Pre Galvanized Steel Construction
2-Gang Gangable Wall Box, 4 Inch Depth, Pre Galvanized Steel Construction
2-Gang Gangable Wall Box, 4 Inch Depth, Pre Galvanized Steel Construction
2-Gang Gangable Wall Box, 4 Inch Depth, Pre Galvanized Steel Construction
  • MPN: HBL985
  • UPC: 783585459752
  • PPN: HBL-HBL985
  • UNSPSC: 39121309

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$36.62/ EA

Description

Wall Boxes, Data Box, Gangable, 2- Gang, 4" Depth, 2" KOs

Features

  • Ideal for delivering power, data and AV side-by-side
  • Accepts industry standard wallplates for consistent appearance
  • Allows for multiple options for AV in-wall solutions
  • Accepts HBL989 Low Voltage Divider
  • Gangable design allows for design installation and flexibility;4 inch depth accommodates large cables and required bend radii

Specifications

Specifications

Country of Origin
China
Width
4.800 in
Mounting Method
Integral Mounting Bracket
Application
Flush mount in wall
Knockouts
Top KOs- (2) 1/2", (2) 1/2"-3/4" TKO. Bottom KOs- (1)1", 1-1/4", 1-1/2", and 2". Back KOs- (2) 1/2"-3/4" TKO
Special Features
Gangable design allows for design installation and flexibility;4 inch depth accommodates large cables and required bend radii
Type
Boxes
Construction Material - Main
Pre Galvanzied Steel
Freight Class Code
06168002
Image Actual Or Representative
A
Series
Gangable
BOX SIZE
5.000x21.700x9.900 (in)
Carton - Number of Sub Packs
10
Carton - SCC-14 Next Lower Level Sub Pack
00783585459752
Case Weight
6.471 lb.
Pallet Height
45.000 in
Pallet Weight
1375.200 lb.
Application - For Use OnWall
Industry Standard(s)cULus Listed
Size2-Gang
ColorNatural
MaterialPre Galvanzied Steel
StandardcULus Listed
General Literature Asset 1 Display TextConcealled Connections
Description - Invoice2G WALLBOX, GANGABLE, 4INCH DEEP, 2IN KO
Harmonization Code7326908688
MSDS FlagNo
Base Unit of MeasureEA
Carton - Gross Weight per Pack18.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Pallet - GTIN - Package70783585459751
Pallet Length48.000 in
Pallet Width40.000 in

Certifications

Certified Listed
cULus Listed
EU RoHS IndicatorContact Manufacturer
