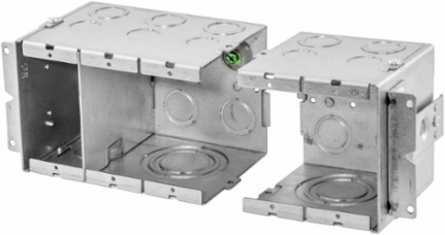

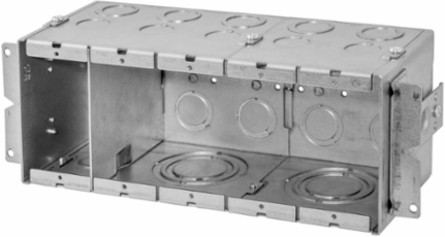

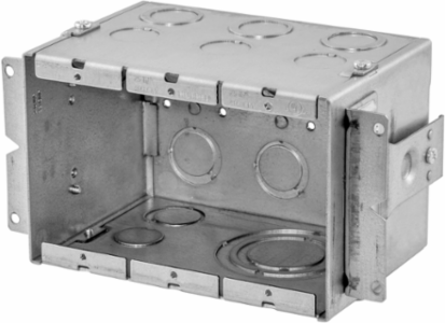

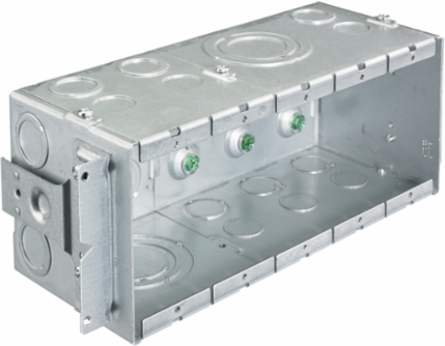

Bryant HBL986 Gangable Wall Box, 3-Gang, 4 Inch Depth, 79 Cu.In Capacity, Pre Galvanized Steel

Gangable Wall Box, 3-Gang, 4 Inch Depth, 79 Cu.In Capacity, Pre Galvanized Steel
Gangable Wall Box, 3-Gang, 4 Inch Depth, 79 Cu.In Capacity, Pre Galvanized Steel
Gangable Wall Box, 3-Gang, 4 Inch Depth, 79 Cu.In Capacity, Pre Galvanized Steel
Gangable Wall Box, 3-Gang, 4 Inch Depth, 79 Cu.In Capacity, Pre Galvanized Steel
  • MPN: HBL986
  • UPC: 783585459769
  • PPN: HBL-HBL986
  • UNSPSC: 39121309

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$54.86/ EA

Description

Wall Boxes, Data Box, Gangable, 3- Gang, 4" Depth, 2" KOs

Features

  • Large 2" Knockout for Connectorized Cables
  • Ideal for delivering power, data and AV side-by-side
  • Accepts industry standard wallplates for consistent appearance
  • Includes Raised Grounding Screws
  • Accepts HBL989 or HBL989AVD Low Voltage Dividers
  • 79 Cu.In. Capacity
  • Gangable design allows for design installation and flexibility;4 inch depth accommodates large cables and required bend radii

Specifications

Specifications

Country of Origin
China
Width
4.700 in
Mounting Method
Integral Mounting Bracket
Application
Flush mount in wall
Knockouts
Top KOs- (3) 1/2", (3) 1/2"-3/4" TKO. Bottom KOs- (1) 1/2", 1/2"-3/4" TKO, (1) 1", 1-1/4", 1-1/2", and 2". Back KOs- (3) 1/2"-3/4" TKO
Special Features
Gangable design allows for design installation and flexibility;4 inch depth accommodates large cables and required bend radii
Type
Boxes
Description - Invoice
3G WALLBOX, GANGABLE, 4INCH DEEP, 2IN KO
Harmonization Code
7326908688
MSDS Flag
No
Base Unit of Measure
EA
Carton - Gross Weight per Pack
13.650 lb.
Carton - Pack Description
Carton
Carton - Total Units
6 EA
Pallet - GTIN - Package
70783585459768
Pallet Length
48.000 in
Pallet Width
40.000 in
Application - For Use OnWall
Industry Standard(s)cULus Listed
Size3-Gang
ColorNatural
MaterialPre Galvanzied Steel
StandardcULus Listed
Construction Material - MainPre Galvanzied Steel
Freight Class Code06168002
Image Actual Or RepresentativeA
SeriesGangable
BOX SIZE6.800x13.100x9.700 (in)
Carton - Number of Sub Packs6
Carton - SCC-14 Next Lower Level Sub Pack00783585459769
Case Weight14.400 lb.
Pallet Height47.600 in
Pallet Weight1512.000 lb.

Certifications

Certified Listed
