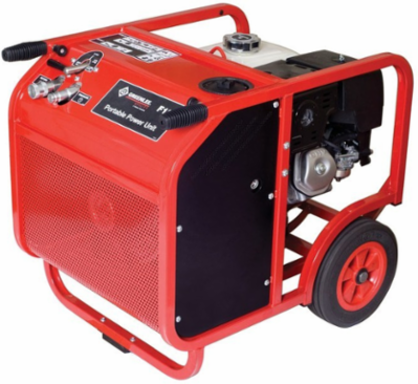

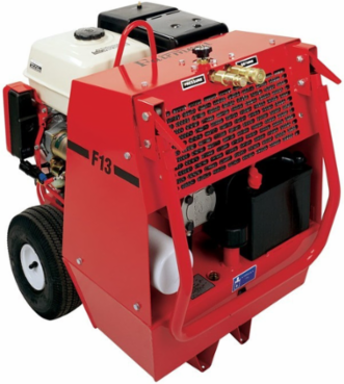

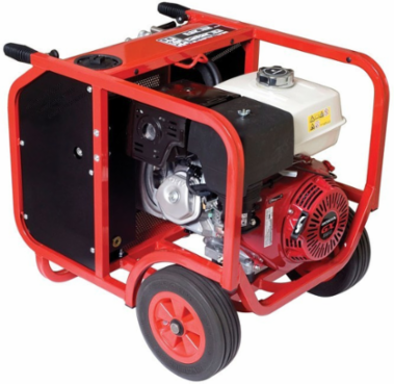

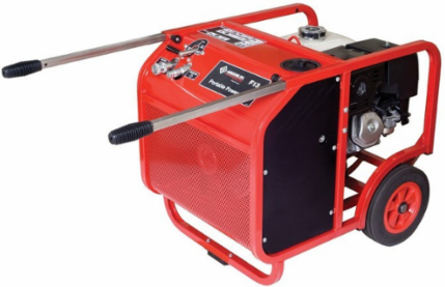

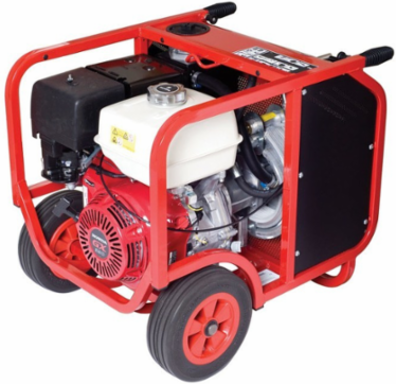

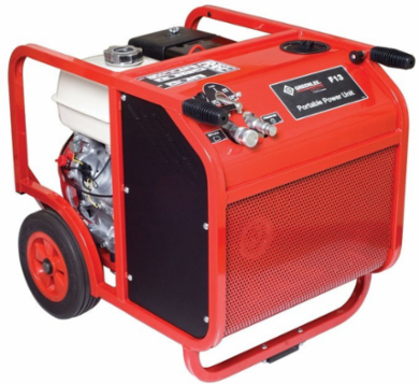

Greenlee F13 Gas Powered Hydraulic Power Unit 13 HP 2000 PSI 5-8 GPM 13 Inch Tires
- MPN: F13
- UPC: 783310313786
- PPN: GRN-F13
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Gas Powered Hydraulic Power Unit 13 HP 2000 PSI 5-8 GPM 13 Inch Tires
Features
- Easy pull recoil start and dependable Honda 4-stroke OHV GX390 gasoline engine with low oil alert and shutdown protection system
- The engine is CARB (California Air Resources Board) certified as well as compliant with upcoming 2011 EPA emissions standards
- Powder-coated, welded steel tubular frame protects components and allows easy access to all service points
- Oversized oil cooler and electric fan ensures cool running
- Large 13 inch (330 mm) no-flat tires ensure easy job site handling and transport over a wide variety of surfaces and soils
- Quick-release telescoping handles
- Hydraulic oil-level site gauge
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Denmark |
|---|---|
| Length | 28.000 IN (710.000 MM) |
| Dry Weight | 168.000 LB (76.000 KG) |
| Height (Handle Folded) | 25.500 IN (648.000 MM) |
| Rated Flow | 5 - 8 GPM (19 - 30 LPM) |
| Standard | CARB (California Air Resources Board) Certified, 2011 EPA Emissions Standard |
| Tire Type | Large 13.000 IN (330.000 MM) No-Flat Tires |
| Width | 23.500 IN (597.000 MM) |
|---|---|
| Cooling System | Oil Cooler, Electric Fan |
| Fuel | Gasoline 1.700 GAL (6.500 L) |
| Hydraulic Oil Capacity | 1.800 GAL (7.000 L) |
| Rated Pressure | 2000 PSI (138 BAR) |
| System | Open-Center System |
Motor Information
| Horsepower | 13 HP At 3600 RPM (9.7 KW At 3600 RPM) |
|---|
