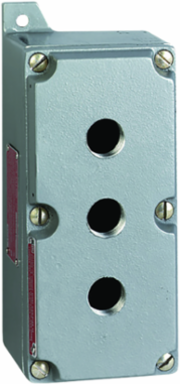

Aluminum Operator Body with 3 Drilled Holes, 10.31 Inch x 8.38 Inch x 4.13 Inch, Hazardous Location
Killark

Killark GCS-16 Aluminum Operator Body with 3 Drilled Holes, 10.31 Inch x 8.38 Inch x 4.13 Inch, Hazardous Location

  • MPN: GCS-16
  • UPC: 783936205434
  • PPN: HBL-GCS-16
  • UNSPSC: 39122216

CAD

$856.51

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

GCS Series - Aluminum Operator Body - Three Drilled And Tapped Operator Holes In Cover - Style 1

Features

  • Device bodies and covers are cast copperfree aluminum alloy and provide a wide assortment for custom assemblies.
  • Bodies are designed for custom drilled and tapped conduit openings on all four sides and the back.
  • Ground flange joint between bolted cover and box provide required flame path.
  • GO Short Style Push button, selector switches and pilot light operator bodies are copper-free aluminum.
  • Operating shaft in both push buttons and selector switches are stainless steel.
  • Open space between gangs for easy wiring from one cover to another.
  • Contact blocks are rated heavy duty, 600 VAC max.
  • Internal ground screw.
  • Killark GCS and SWBC SERIES CONTROL STATIONS provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more for use with Killark “GO” Short Style operators when installed in the covers and “GO” Long Style operators when installed in the back wall to allow for thickness of a panel for panel mounting. For use in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use and are Non-Factory Sealed requiring the need for a conduit seal fitting. UL Listed and CSA Certified. The GCS and SWBC can be drilled and tapped to order or in the field by the customer from ½” to 1 1/2” for dead end and feed through entries.

Specifications

Key Specifications

Country of Origin
United States
Depth
4-1/4 in
Hazardous Rating(s)
Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Length
10.31 in
Color
Gray
Special Features
Killark GCS and SWBC SERIES CONTROL STATIONS provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more for use with Killark “GO” Short Style operators when installed in the covers and “GO” Long Style operators when installed in the back wall to allow for thickness of a panel for panel mounting. For use in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use and are Non-Factory Sealed requiring the need for a conduit seal fitting. UL Listed and CSA Certified. The GCS and SWBC can be drilled and tapped to order or in the field by the customer from ½” to 1 1/2” for dead end and feed through entries.
Width
8.38 in
Class Code
D25
Freight Class Code
06316009
Image Actual Or Representative
A
MSDS Flag
No
Returnable Indicator
Yes
CSA File Number
LR11716
UL File Number
E10514
Base Unit of Measure
EA
Carton - Gross Weight per Pack
15.600 lb.
Carton - Pack Description
Carton
Carton - Total Units
2
NAICS Code
3359326103
Back Box TypeSWB
Dimensions10.31 in x 8.38 in x 4.13 in
Height4.13 in
ApplicationFor use with G Series custom control panel operators.
Size10.31 in x 8.38 in x 4.13 in
TypeAluminum Operator Body
ARRA CompliantContact Manufacturer
Description - InvoiceOPERATOR BODIES 3 GO HOLES
Harmonization Code7616995190
Lead Time30 wk
Order Multiple1 EA
Sub Class CodeD25D250
Gross Weight with Packaging7.8
SeriesGCS Series
BOX SIZE4.130x10.310x8.380 (in)
Carton - Number of Sub Packs2
Carton - SCC-14 Next Lower Level Sub Pack00783936205434
Master Pack DescriptionEach

Certifications

EU RoHS Indicator
Contact Manufacturer
