Greenlee 653 24" Hook-Type Sheave
- MPN: 653
- UPC: 783310153276
- PPN: GRN-00653
- UNSPSC: 39121722
CAD
$312.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

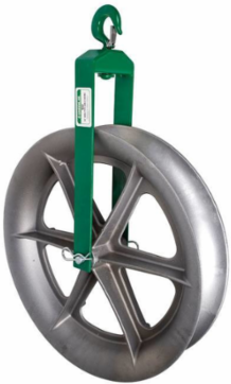

24" Hook-Type Sheave
Features
- Strong, welded steel framesForged steel closure-type hooks with 1 IN (25.4 mm) opening
- 5 IN (127 mm) wide aluminum alloy sheaves with self-lubricating bearings
- Select a sheave with a maximum rated capacity that meets or exceeds the cable puller's maximum pulling force
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Outside Diameter | 24" |
| Groove | R2.25" |
| Includes | 16797 UPC 16797 Sheave Pin, 50302 UPC 50302 Sheave Pin Clip(2), 15363 UPC 15363 Sheave, 16798 UPC 16798 Sheave Bushing(2), 16802 UPC 16802 Yoke Frame |
| Type | Sheave Assembly |
| Keyway | None |
|---|---|
| Pitch Diameter | Between 24" and 19.5" |
| Material | 5 IN (127 mm) wide aluminum alloy sheaves with self-lubricating bearings |
| Standard | SHEAVE-CABLE 24" HOOK TYPE |
| Capacity | 4000.000 LB (17.800 KN) |
