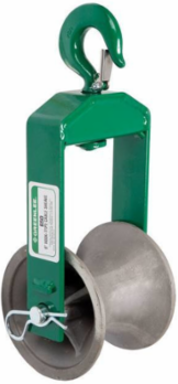

Greenlee 650 6" Hook-Type Sheave
- MPN: 650
- UPC: 783310153245
- PPN: GRN-00650
- UNSPSC: 39121722
CAD
$69.56
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
6" Hook-Type Sheave
Features
- Strong, welded steel frames
- Forged steel closure-type hooks with 1 IN (25.4 mm) opening
- 5 IN (127 mm) wide aluminum alloy sheaves with self-lubricating bearings
- Select a sheave with a maximum rated capacity that meets or exceeds the cable puller's maximum pulling force
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Keyway | None |
| Pitch Diameter | Between 6" and 3" |
| Material | 5 IN (127 mm) wide aluminum alloy sheaves with self-lubricating bearings |
| Standard | 6" (152.4 mm) dia. Hook Sheave with 1-1/2" (38.1 mm) minimum radius |
| Capacity | 4000.000 LB (17.800 KN) |
| Bore Diameter | 0.76" |
|---|---|
| Outside Diameter | 6" |
| Groove | R2.50" |
| Includes | 16797 UPC 16797 Sheave Pin, 50302 UPC 50302 Sheave Pin Clip(2), 15362 UPC 15362 Sheave, 16798 UPC 16798 Sheave Bushing(2), 16799 UPC 16799 Yoke Frame |
| Type | Sheave Assembly |
