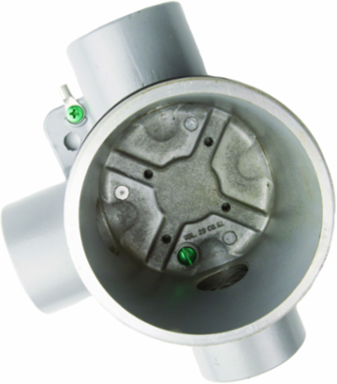

Killark GEBT-2-EX GEB-EX Outlet Body with Cover, 3/4 Inch Hub, Copper Free Aluminum, IP66
- MPN: GEBT-2-EX
- UPC: 783936092157
- PPN: HBL-GEBT-2-EX
- UNSPSC: 39121314
CAD
$476.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
GEB-EX 3-1/2 ID RD Body, "T" 3/4" Hubs, Copper Free Cast Aluminum, Nitrile O-Ring, UL/CSA/ATEX/IECEx, Class I Div. 1 EX D, Type 4 IP66, Instrument Enclosure
Features
- Suitable for NEMA 4X applications. Integral mounting lugs. Green ground screw standard. External cover thread on body plus smooth integral hub bushing protects conductor insulation when pulling. Taper threaded hubs provide ground continuity. External threaded body for additional wiring room. Covers and gaskets furnished with boxes as standard.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Height | 5.19 in |
| Application | Conduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes. |
| Length | 4.313 in |
| Special Features | Suitable for NEMA 4X applications. Integral mounting lugs. Green ground screw standard. External cover thread on body plus smooth integral hub bushing protects conductor insulation when pulling. Taper threaded hubs provide ground continuity. External threaded body for additional wiring room. Covers and gaskets furnished with boxes as standard. |
| Width | 6.5 in |
| Finish Type | Powder Epoxy Paint |
| Class Code | D30 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| Buy America(n) Qualified | Contact Manufacturer |
| Hub Pattern | T |
| Series | GE Series |
| BOX SIZE | (in) |
| Master Pack Description | Each |
| Dimensions | 4.313 in x 6.5 in x 5.19 in |
|---|---|
| Hub Size | 3/4" |
| Color | Gray |
| Size | 4.313 in x 6.5 in x 5.19 in |
| Type | Outlet Body With Cover |
| Engineering Drawing 1 Display Text | GEBT-2-EX Engineering Drawing |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | OUTLET BODY 3/4 IN AL T-TYPE ATEX IECEX |
| Harmonization Code | 7609000000 |
| Lead Time | 25 wk |
| Order Multiple | 1 EA |
| Sub Class Code | D30D237 |
| Gross Weight with Packaging | 3.5 |
| Material | Aluminum, Copper Free (less than 4/10 of 1%) |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936092157 |
| NAICS Code | 3359326103 |
