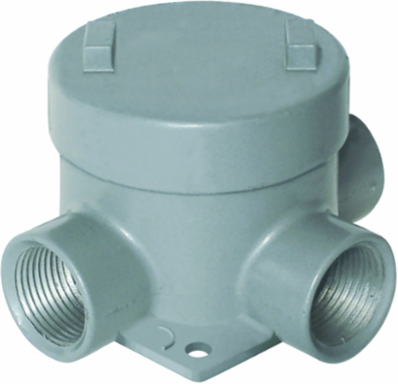

Killark GEBT-24 T-Type Aluminum Outlet Body, 3/4" & 1-1/4" Hub Size, NEMA 4X, 6.63 x 6 x 4.38 Inch
- MPN: GEBT-24
- UPC: 783936114866
- PPN: HBL-GEBT-24
- UNSPSC: 39121314
CAD
$303.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
GEB Outlet Body, T Type, Aluminum- Hub Size (2) 3/4" (1) 1-1/4"
Features
- Suitable for NEMA 4X applications
- Integral mounting lugs
- Green ground screw standard
- External cover thread on body plus smooth integral hub bushing protects conductor insulation when pulling
- Taper threaded hubs provide ground continuity
- External threaded body for additional wiring room
- Includes cover and gasket
- Suitable for NEMA 4X applications. Integral mounting lugs. Green ground screw standard. External cover thread on body plus smooth integral hub bushing protects conductor insulation when pulling. Taper threaded hubs provide ground continuity. External thre
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Hub Size
- 3/4" & 1-1/4"
- Color
- Gray
- Size
- 6.63 in x 6 in x 4.38 in
- Type
- Outlet Body With Cover
- Engineering Drawing 1 Display Text
- GEBT-24 Engineering Drawing
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- BODY, OUTLET W/(2)3/4&(1)1 1/4NPT HUBS,
- Harmonization Code
- 7609000000
- Lead Time
- 49 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D237
- Gross Weight with Packaging
- 3.5
- UL File Number
- E10514
- Series
- GE Series
- BOX SIZE
- (in)
- Master Pack Description
- Each
Dimensions6.63 in x 6 in x 4.38 in
Height4.38 in
ApplicationConduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes.
Length6.63 in
Special FeaturesSuitable for NEMA 4X applications. Integral mounting lugs. Green ground screw standard. External cover thread on body plus smooth integral hub bushing protects conductor insulation when pulling. Taper threaded hubs provide ground continuity. External thre
Width6 in
Finish TypePowder Epoxy Paint
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11716
Hub PatternT
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936114866
NAICS Code3359326103
Certifications
- EU RoHS Indicator
- Contact Manufacturer
