nVent Hoffman M170216G009 Genesis Compact Indoor Air Conditioner, 1800 BTU/Hr, 12 Inch Width, 56 lb.
- MPN: M170216G009
- UPC: 783510737504
- PPN: HOF-M170216G009
CAD
$4697.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

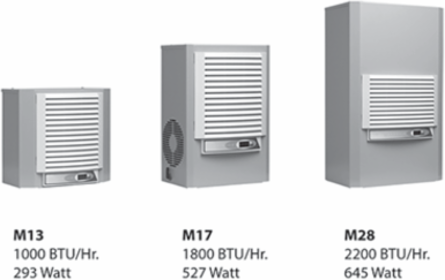

Genesis Compact Indoor Air Conditioner, 1800 BTU/Hr, 12 Inch Width, 56 lb.
Features
- Robust reciprocating compressor
- R134a or R407c earth-friendly refrigerant
- Models for 115, 230 and 460 single phase VAC power input
- UL Listed or Recognized to save customers time and money with agency approvals
- Operating temperature range from 50 F/10 C to 125 F/52 C
- Attractive industrial design with minimal use of visible fasteners
- Reliable mechanical thermostat located behind the filter of the unit; indoor air conditioner models include digital display on ambient side
- Low-carbon mild-steel sheet-metal cover for rugged factory environments
- Easy-mount flanges for simple installation
- Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
- Mounting hardware, gaskets and user manual furnished with the unit
- Every unit functionally tested before shipping
- Standard Indoor Air Conditioner models also include:
- Electro-Mechanical Thermostat
- Surge Suppressor
- Condensate Management System
Documentation & Downloads
Specifications
Key Specifications
- Catalog Number
- M170216G009
- Nominal Watts
- 527
- Voltage
- 100 - 120 VAC
- Fahrenheit Max.
- 125
- Width (in.)
- 12.00
- Weight (lb.)
- 56
Nominal BTU/Hr.1800
Max Current (A)6.9
Fahrenheit Min.50
Height (in.)17.65
Depth (in.)8.68
StandardsUL/cUL Listed; Type 12; File No. SA6453 || UR/cUR Recognized || Maintains U/cUL Type 12 rating when properly installed on a UL/cUL Type 12 enclosure. || UR/cUR Recognized on select models, reference performance data tables. || CE || EAC
