nVent Hoffman M170226G004 Genesis Compact Indoor Air Conditioner 1800 BTU/Hr, 12 Inch Width, 17.65 Inch Height

MPN: M170226G004
UPC: 783510737603
PPN: HOF-M170226G004

$4793.38

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

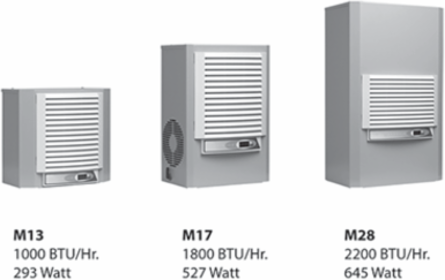

Genesis Compact Indoor Air Conditioner 1800 BTU/Hr, 12 Inch Width, 17.65 Inch Height

Features

Robust reciprocating compressor
R134a or R407c earth-friendly refrigerant
Models for 115, 230 and 460 single phase VAC power input
UL Listed or Recognized to save customers time and money with agency approvals
Operating temperature range from 50 F/10 C to 125 F/52 C
Attractive industrial design with minimal use of visible fasteners
Reliable mechanical thermostat located behind the filter of the unit; indoor air conditioner models include digital display on ambient side
Low-carbon mild-steel sheet-metal cover for rugged factory environments
Easy-mount flanges for simple installation
Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
Mounting hardware, gaskets and user manual furnished with the unit
Every unit functionally tested before shipping
Standard Indoor Air Conditioner models also include:
Electro-Mechanical Thermostat
Surge Suppressor
Condensate Management System

Documentation & Downloads

Specifications

Key Specifications

Catalog Number	M170226G004
Nominal Watts	527
Voltage	200 - 250 VAC
Fahrenheit Max.	125
Width (in.)	12.00
Weight (lb.)	56

Nominal BTU/Hr.	1800
Max Current (A)	3.1
Fahrenheit Min.	50
Height (in.)	17.65
Depth (in.)	8.68
Standards	UL/cUL Listed; Type 12; File No. SA6453 \|\| UR/cUR Recognized \|\| Maintains U/cUL Type 12 rating when properly installed on a UL/cUL Type 12 enclosure. \|\| UR/cUR Recognized on select models, reference performance data tables. \|\| CE \|\| EAC
