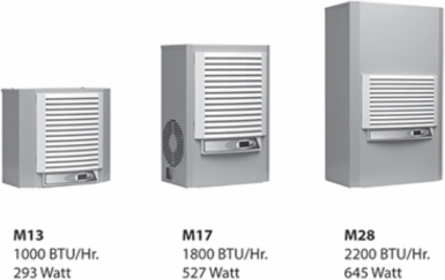

nVent Hoffman M280226G004 Genesis Compact Indoor Air Conditioner, 200-250 VAC, 4.2 A, 2200 BTU/Hr, 28.5 Inch H, 17 Inch W, 11.30 Inch D
- MPN: M280226G004
- UPC: 078351073790
- PPN: HOF-M280226G004
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Genesis Compact Indoor Air Conditioner, 200-250 VAC, 4.2 A, 2200 BTU/Hr, 28.5 Inch H, 17 Inch W, 11.30 Inch D
Features
- Robust reciprocating compressor
- R134a or R407c earth-friendly refrigerant
- Models for 115, 230 and 460 single phase VAC power input
- UL Listed or Recognized to save customers time and money with agency approvals
- Operating temperature range from 50 F/10 C to 125 F/52 C
- Attractive industrial design with minimal use of visible fasteners
- Reliable mechanical thermostat located behind the filter of the unit; indoor air conditioner models include digital display on ambient side
- Low-carbon mild-steel sheet-metal cover for rugged factory environments
- Easy-mount flanges for simple installation
- Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
- Mounting hardware, gaskets and user manual furnished with the unit
- Every unit functionally tested before shipping
- Standard Indoor Air Conditioner models also include:
- Electro-Mechanical Thermostat
- Surge Suppressor
- Condensate Management System
Documentation & Downloads
Specifications
Key Specifications
- Catalog Number
- M280226G004
- Nominal Watts
- 645
- Voltage
- 200 - 250 VAC
- Fahrenheit Max.
- 125
- Width (in.)
- 17.00
- Weight (lb.)
- 97
Nominal BTU/Hr.2200
Max Current (A)4.2
Fahrenheit Min.50
Height (in.)28.5
Depth (in.)11.30
StandardsUL/cUL Listed; Type 12; File No. SA6453 || UR/cUR Recognized || Maintains U/cUL Type 12 rating when properly installed on a UL/cUL Type 12 enclosure. || UR/cUR Recognized on select models, reference performance data tables. || CE || EAC
