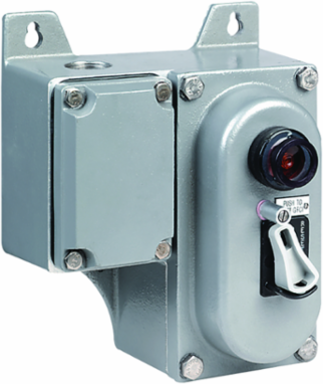

Killark GFCS05152 Aluminum GFCI Ground Fault Control Station - 2 Pole, 15A Breaker, 120/240VAC, 1 Inch NPT
Killark GFCS05152 Aluminum GFCI Ground Fault Control Station - 2 Pole, 15A Breaker, 120/240VAC, 1 Inch NPT
- MPN: GFCS05152
- UPC: 783936112619
- PPN: HBL-GFCS05152
- UNSPSC: 39122216
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$4689.25/ EA
Description
GFCS Series - Aluminum Feed-Thru 2-Pole Ground Fault Control Station -Factory Sealed - 5 Milliamp Trip - 15A Breaker - 120/240VAC - Hub Size 1Inch NPT
Features
- Factory Sealed Ground Fault Chamber (Assemblies in Group B areas must be sealed within 6" of enclosure. Other area classification do not require the use of seals).
- 1" NPT top and bottom conduit openings.
- External Push-to-Test Button and Pilot Light for monitoring.
- ON-OFF_TEST-Reset External Handle can be locked in ON-OFF positions.
- 5ma Ground Fault Circuit Breaker for People Protection.
- 30ma Ground Fault Circuit Breaker for Equipment Protection and heat tracing circuits.
- Electrical Rating 120VAC (single pole), 120/240VAC (two pole), 10,000AIC.
- Suitable for indoor/outdoor use to provide a degree of protection against rain, sleet, windblown dust and damage from external ice formations.
Specifications
Specifications
- Country of Origin
- US
- Each - Width
- 7.375 in
- Height
- 7.875 in
- Primary Voltage
- 240 VAC
- Actuator
- Miniature Circuit Breaker Operator with Reset
- Application
- GFCS Series of ground fault control stations are used for the additional safety of personnel, and for equipment protection in remote areas.
- Enclosure
- Bolted
- Number of Poles
- 2
- Type
- GFCI
- Width
- 7.375 in
- Finish Type
- Powder-Coated Polyester Epoxy
- Mounting Type
- Wall
- Number Of Poles
- 2
- Reset Type
- Pushbutton on MCB Handle
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- 2P 5MILLIAMPTRIP 15BREAKER AMP
- Harmonization Code
- 8536200020
- Lead Time
- 30 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D25D251
- Factory Sealed
- Factory Sealed
- UL File Number
- E83969
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Master Pack Description
- Each
Depth8.5
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Operating Temperature Celcius Max40 Degree
ActionDP
Amperage Rating15 A
ColorGray
MountingWall
Special FeaturesSuitable for indoor/outdoor use to provide a degree of protection against rain, sleet, windblown dust and damage from external ice formations.
Weight13 lb.
Enclosure TypeBolted
Frequency Rating60 Hz
Nema Rating3, 7(B, C, D), 9(E, F, G)
Number Of Wires3
Sensitivity5mA
Class CodeD25
Freight Class Code06316009
Image Actual Or RepresentativeA
MSDS FlagNo
Returnable IndicatorNo
CSA File NumberLR061895-2
Gross Weight with Packaging13
Indicator(s) TypePilot Light
SeriesGFCS Series
Carton - SCC-14 Next Lower Level Sub Pack00783936112619
Certifications
- EU RoHS Indicator
- Contact Manufacturer
