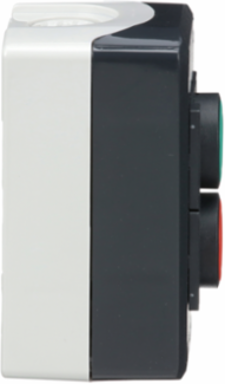

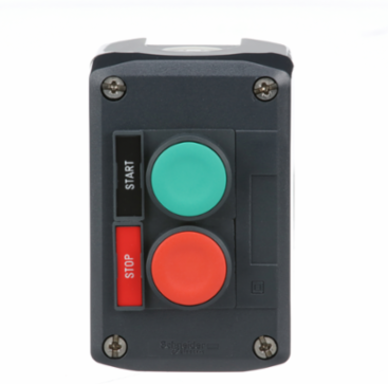

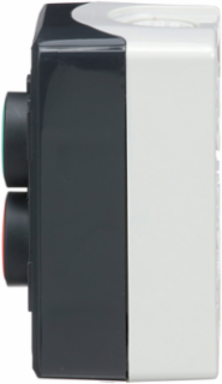

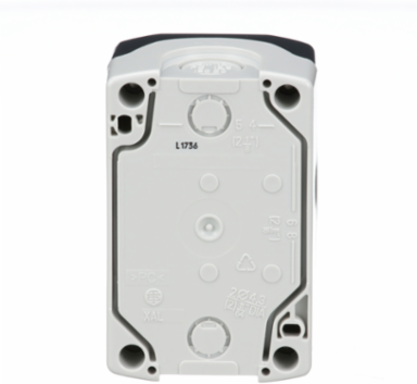

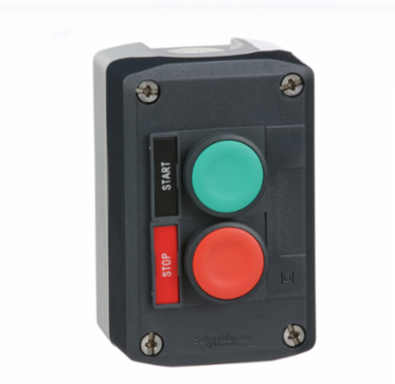

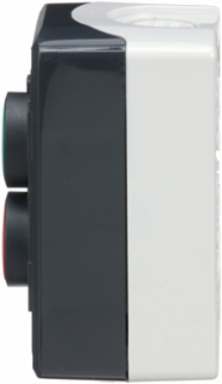

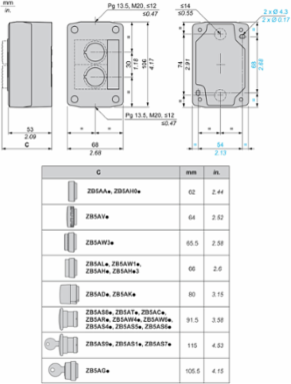

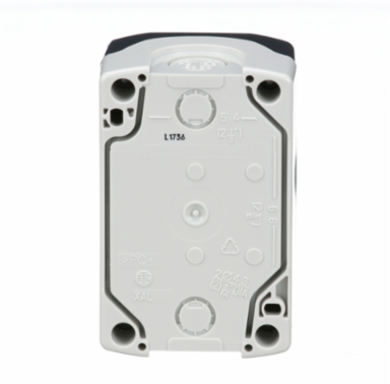

Schneider Electric XALD211H29H7 Harmony Control Station, 2 Push Buttons, IP66, -40 to 70 C

  • MPN: XALD211H29H7
  • PPN: SCH-XALD211H29H7
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $109.34

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K. It is compatible with the Harmony XB5 range of control and signaling units, providing a wide choice of circular and square heads

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    France, United States

    Physical Attributes

    Color Of Base Of Enclosure
    light grey RAL 7035)
    Housing Color
    grey
    Color Of Coverdark greydark grey RAL 7016)

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Control Station Composition

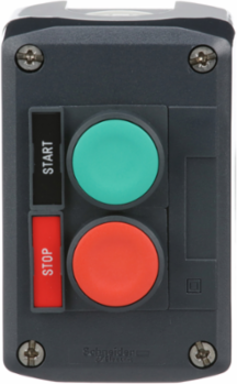

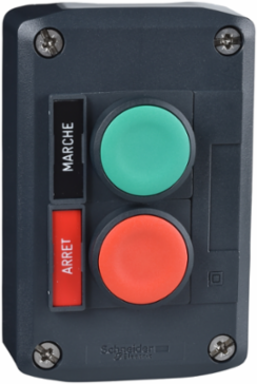

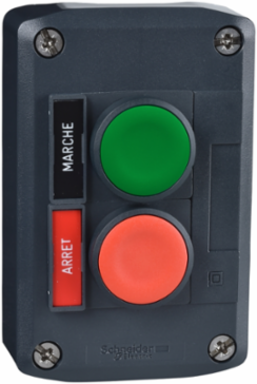

    1 flush push-button, green 1 NO START, 1 flush push-button, red 1 NC STOP
    Electrical Reliability
    λ < 10exp(-6) 5 V, 1 mA IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA IEC 60947-5-4
    Certificate Agency
    CSA, UL Listed
    Carbon Footprint Of The Distribution Phase [A4]
    0.1666682487777218, 0.2 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0.0009823582472341557, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
    0 kg CO2 eq., 0.00917078425119527
    Local Publishable Date
    2026-03-26
    Stocking Flag
    N
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI2506022EN
    Reach Full Compliance Status Id
    NOT_CONTAINING_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1930
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Cable Entry
    2 knock-outs for cable entry 14-14 mm2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
    Contact Operation
    slow-break
    Control Station Application
    Start-Stop function
    Device Short Name
    XALD
    Marking Location
    marking on legend holder
    Mechanical Durability
    5000000 cycles
    Operating Travel
    1.5 mm NC changing electrical state)2.6 mm NO changing electrical state)4.3 mm total travel)
    Operators Description
    green ''START'' 1 NO - red ''STOP'' 1 NC
    Positive Opening
    with IEC 60947-5-1 appendix K
    Product Destination
    for XB5 Ø 22 mm control and signalling units
    Protective Treatment
    TH
    Resistance To High Pressure Washer
    7000000 Pa 55 °C 0.1 m
    Shock Resistance
    30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Sustainable Packaging
    Yes
    Total Lifecycle Carbon Footprint
    2 kg CO2 eq.
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Ac Control Voltage 60 Hz
    120-600 V
    Number Of Contacts As Normally Closed Contact
    1
    Number Of Push Buttons
    2
    Color Of Cover
    dark greydark grey RAL 7016)
    Pep Code
    ENVPEP2506022EN
    Pep Verification Date
    2025-06-30
    Psr Version
    PSR-0005-ed3.1-EN-2023 12 08
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime In Y
    20
    Energy Model - Installation [A5]
    No energy used
    Energy Model - End Of Life [C1-c4]
    Global, European and French datasets are used.
    [Ith] Conventional Free Air Thermal Current
    10 A IEC 60947-5-1
    [Uimp] Rated Impulse Withstand Voltage
    6 kV IEC 60947-1
    Short-circuit Protection
    10 A cartridge fuse gG IEC 60947-5-1
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Customs Code
    8536509035
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    Shape Of Screw Headcross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
    [Ie] Rated Operational Current6 A 120 V, AC-15, A600 IEC 60947-5-13 A 240 V, AC-15, A600 IEC 60947-5-11.2 A 600 V, AC-15, A600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.5 kg CO2 eq., 0.48820426077596657
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]1 kg CO2 eq., 1.2413050567987531
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Compatibility CodeXALD
    Contacts Materialsilver alloy (Ag/Ni)
    Dc Control Voltage125-600 V
    Housing Materialplastic
    Materialpolycarbonate
    Operating Force3.5 N NC changing electrical state3.8 N NO changing electrical state
    Operator Profile2 flush push-buttons
    Overvoltage Categoryclass II conforming to IEC 60536
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Or Component Typecomplete control station
    Range Of ProductHarmony XALD
    ReturnabilityYes
    Software Versionv6.3.0.1-4
    Tightening Torque0.8-1.2 N.m IEC 60947-1
    Vibration Resistance5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6
    Ac Control Voltage 50 Hz120-600 V
    Number Of Command Positions2
    Number Of Contacts As Normally Open Contact1
    Color Of Base Of Enclosurelight grey RAL 7035)
    Housing Colorgrey
    Database Version2024-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionHarmony XALD dark grey control station is ideal to control stop operation in machines. This dark grey control station enables machine builders to easily add control and signalling functionality on their machines, with permanent modifications or damage to their machine body. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It is compatible with Harmony XB5 range push buttons, switches and pilot lights and product is adhering to adhering to international standards with lifetime of 20 years.
    Functional-unit Unitunit
    Energy Model - Manufacturing [A1-a3]Electricity Mix; High voltage; 2020; France, FR
    Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Global, GLO
    Recyclability Potential In %18
    [Ui] Rated Insulation Voltage600 V 3)IEC 60947-1
    Connections - Terminalsscrew clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1
    Emergency Power Off (Epo)no
    Package Weight(Lbs)226.796 g
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -40-70 °C, -40-70 °C
    Ip Degree Of Protection
    IP66 IEC 60529, IP67, IP69, IP69K, IP66/IP67/IP69/IP69K
    Take Back
    No
    Recycled Metal Content At Cr Level
    0 %
    Toxic Heavy Metal Free
    Yes
    Carbon Footprint
    1.906330708850871
    Environmental Disclosure
    ENVPEP2506022EN
    Packaging Made With Recycled Cardboard
    Yes
    Reach Free Of Svhc
    Yes
    Pep Code
    ENVPEP2506022EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Nema Degree Of Protection/13, NEMA 13, NEMA 4X
    Reach Free ShvcYes
    China Rohs RegulationX
    Mercury FreeYes
    Circularity ProfileENVEOLI2506022EN
    Eu Rohs DirectiveCompliant
    Packaging Without Single Use PlasticYes
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep Verification Date2025-06-30
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08

    General Attributes

    Product Or Component Type
    complete control station
    Range Of ProductHarmony XALD

    ETIM

    ETIM 8
    EC000225
    ETIM 9EC000225

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
